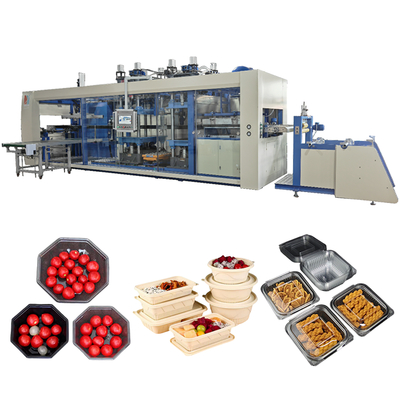

HX-7185 3 Station Pressure Thermoforming Machine with 710×850mm Maximum Molding Die Area and Water Cooled System

Name: HX-7185 3 Station Pressure Thermoforming Machine with 710×850mm Maximum Molding Die Area and Water Cooled System
Brand: Hengxing Blister Machinery (Shenzhen) Co., Ltd
SKU: HX-7185
Price: 15000 USD
Availability: InStock

Brand Name:	HengXing
Model Number:	HX-7185
MOQ:	1
Price:	USD：15000 $ (deposit)
Payment Terms:	L/C,T/T,Western Union,MoneyGram,D/A,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

HX-7185

Applicable Raw Materials:

PET,PP,PC,PS,PVC,BOPS, PLA,Degradable Corn Starch, Etc

Production Efficiency:

10-30 Mold/min

Maximum Molding Die Area:

710×850mm

Minimum Forming Die Area:

400×450mm

Maximum Punching Area:

710×850mm

Applicable Sheet Width:

510-750mm

Applicable Sheet Thickness:

0.15-2.0mm

Maximum Cutting Force Of Cutting Station:

80T Knife Line Length 12m

Height Of Formed Products:

Max 120mm

Operating Weight:

14T

External Dimensions:

L12.5×W3.31×H3.22m

Cooling Method:

The Mold Is Cooled By Circulating Water

Packaging Details:

wooden case

Highlight:

3 Station Pressure Thermoforming Blister Machine

Thermoforming Blister Machine Water Cooled

Product Description

3 Station Pressure Thermoforming Blister Machine Water Cooled Environmentally Friendly

Machine Introduction

As a benchmark-level thermoforming equipment developed by our company, the HX-7185 fully automatic positive and negative pressure three-station thermoforming machine combines technological innovation with multi-scenario adaptability to create efficient, stable, and flexible production tools for plastic processing enterprises.

Technical Highlights

Dual-effect molding: Positive and negative pressure dual-mode molding technology provides more uniform force and clearer contours during the molding process, significantly improving precision and qualification rates.
Three-station parallel operation: Independent operation of raw material feeding, hot pressing forming, and finished product demolding eliminates waiting time, increasing production capacity by more than twice compared to traditional equipment.

Applicable Fields

Food packaging: PP meal boxes, PET fruit trays, PLA biodegradable takeaway boxes (food contact grade materials)
Pharmaceutical packaging: Medical PS syringe trays, PVC tablet liners (meets sterile requirements)
Daily use & electronics: Cosmetic liners, electronic component packaging, stationery storage boxes
Environmental protection: Optimized for biodegradable materials (PLA) to produce eco-friendly food trays and meal boxes

Equipment Value

Capacity amplifier: Three-station design enables high-volume production
Cost optimizer: Reduces labor costs, minimizes waste, and decreases raw material loss
Production flexibility: Quick changeover between product specifications without equipment modification

Machine Parameters
