Fully Automatic Multi-Station Pressure Thermoforming Machine with 610×750mm Forming Area for High Efficiency Plastic Forming

Fully Automatic Multi-Station Pressure Thermoforming Machine with 610×750mm Forming Area for High Efficiency Plastic Forming

Brand Name:	HengXing
Model Number:	HX-7185
MOQ:	1
Price:	USD：15000 $ (deposit)
Payment Terms:	L/C,T/T,Western Union,MoneyGram,D/A,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

HX-6175

Applicable Raw Materials:

PET,PP,PC,PS,PVC,BOPS, PLA,Degradable Corn Starch, Etc

Production Efficiency:

20-30 Mold/min

Maximum Molding Die Area:

610×750mm

Minimum Forming Die Area:

400×450mm

Maximum Punching Area:

610×750mm

Applicable Sheet Width:

510-750mm

Applicable Sheet Thickness:

0.15-1.2mm

Maximum Cutting Force Of Cutting Station:

80T

Height Of Formed Products:

Max 120mm

Operating Weight:

14T

External Dimensions:

L11×W2.0×H2.75m

Cooling Method:

The Mold Is Cooled By Circulating Water

Rated Power Of Electric Furnace:

117kw (actual Consumption 30-50%)

Client Air Source (external Configuration):

Air Supply ≥ 5.5m ³ / Min Air Pressure 0.6~0.8Mpa

Packaging Details:

wooden case

Highlight:

Positive And Negative Thermoforming Machine

20mold/Min Positive And Negative Thermoforming Machine

Product Description

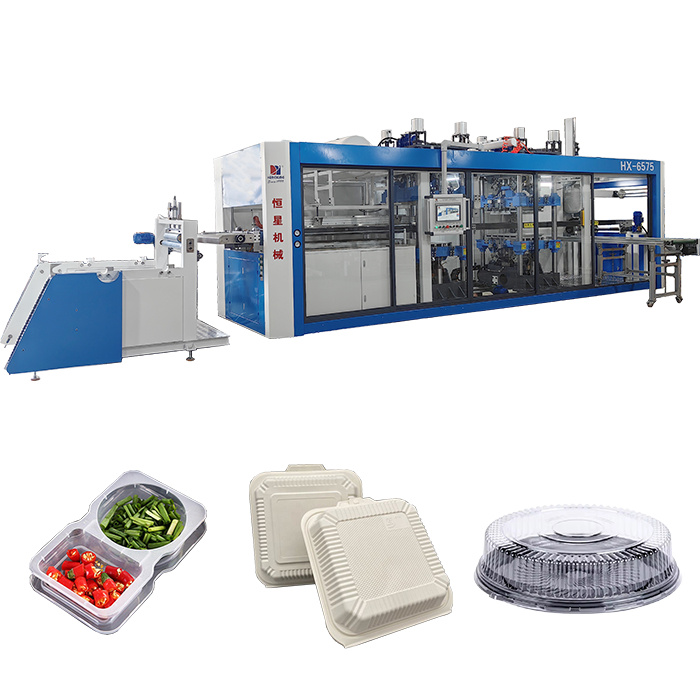

HX-6175 Intelligent Temperature Control System Pressure Thermoforming Machine

The HX-6175 fully automatic positive and negative pressure three-station thermoforming machine is engineered for multi-scene adaptation, high-precision processing, and high-efficiency production. This advanced equipment addresses key challenges in plastic processing with flexible material compatibility, precise parameter control, and superior processing performance.

Key Machine Features

Loading Area

High-power motor feeding system
Maximum coil diameter: 700mm
Capacity: 300-500 KG loading capacity
Rubber roller driven sheet feeding
Two seamless steel pipe rods for sheet replacement
Integrated silicon oil spraying device for easy demoulding

Heating Area

Specialized electric furnace design with heat insulation aluminum foil and insulation cotton
Swedish Cornell heating wires for extended durability
Built-in thermal insulation cotton for superior heat retention
5-year heating brick guarantee
2.5 mm² high-temperature wiring (standard 1.5 mm²)
Precise temperature regulation module
Electric furnace dislocation adjustment for energy saving
PET function for enhanced shaping and transparency

Forming Area
