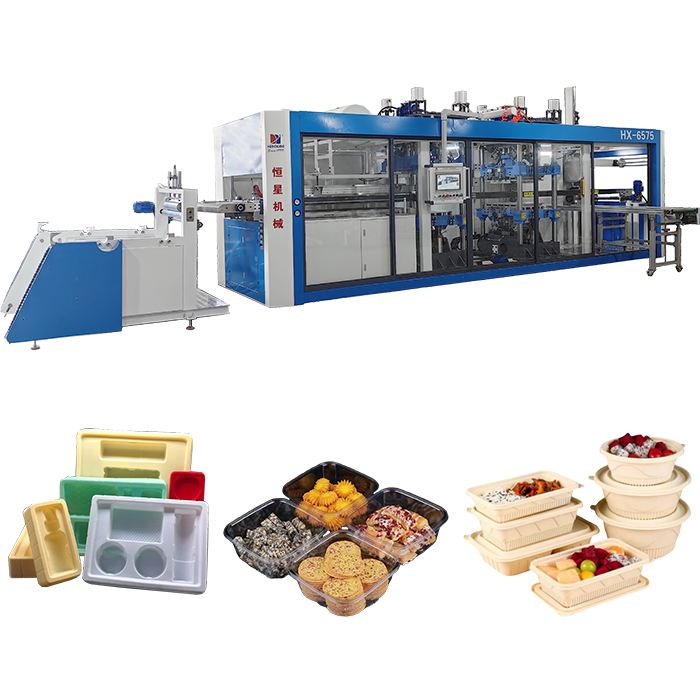

The HX-6575 fully automatic positive and negative pressure three-station thermoforming machine is engineered for multi-scene adaptation, high-precision processing, and high-efficiency production. This advanced equipment addresses common challenges in plastic processing with flexible material compatibility, precise parameter control, and robust processing performance.
Key Machine Features
Control System
Ultra-high definition MCGS color IoT touch screen interface
Remote monitoring and program upgrades via mobile hotspot connectivity
Self-developed system with intuitive operation - operators can master within 1-3 days
Comprehensive monitoring including automatic lubrication, vacuum maintenance alerts, and document storage
Maximum empty machine test speed of 50 modules per minute
Manipulator System
High-power torque servo drives for up, down, left, and right movement
Designed for continuous 24-hour operation without overheating
Multiple stacking modes: up and down stacking, lifting and stacking, in-mold grasping, out-of-mold grasping
Flexible discharge options: side or straight out discharge for various site configurations
Material Receiving System
Advanced torque reducer ensures powerful winding with simple, easy-to-adjust controller, eliminating motor burnout issues common with traditional frequency conversion control.
Chain Rail Drive System
4.5KW servo motor capable of pulling sheets up to 1.5mm thickness
High-precision reducer with spline shaft transmission for ±0.5mm pulling accuracy
Aluminum body girder with guide beads for enhanced abrasion resistance
Japanese CHOHO guide bead chain for stable, wear-resistant operation
Front, middle, and rear electric adjustment for convenient operation
Cooling System
Standard 10P supercharged air-cooled chiller provides superior cooling efficiency and faster delivery speed.
Vacuum System
Jingjie 200 m³/H vacuum pump with 0.4m³ vacuum tank enables instant vacuum release for faster product formation and improved quality.
Lubrication System
High-capacity, high-pressure lubricating pump reduces manual refilling frequency
Designed for long-term operation with reduced pump failure
Requires 00# grease for optimal performance
Food-grade chain oil lubrication system minimizes wear on packaging chain
