Plastic Fruit Clamshell & Meat Tray Thermoforming Machine Automatic Fresh Supermarket Food Packaging Box Making Machine for PP PET Sheet

Plastic Fruit Clamshell & Meat Tray Thermoforming Machine Automatic Fresh Supermarket Food Packaging Box Making Machine for PP PET Sheet

Brand Name: HengXing
Model Number: HX-6175
MOQ: 1
Price: 15000$(deposit)
Payment Terms: L/C T/T Western Union MoneyGram D/A D/P
Detail Information
Product Description
Detail Information
Certification:
CE
Max Forming Depth:
120mm
Cooling Mode:
Forming Through Circulating Water Cooling
Heating System:
Ceramic Heating, Point-to-point Control
Furnace Power:
117KW
Power:
380V Three-phase Four Wire 50/60HZ
Machine Weight:
15000 Kg
Control System:
Inovance System
Production Efficiency:
10-40 Mold/min
Packaging Details:
Wooden Case
Highlight:

automatic plastic fruit clamshell machine

,

PP PET sheet packaging box maker

,

supermarket food tray thermoforming machine

Product Description

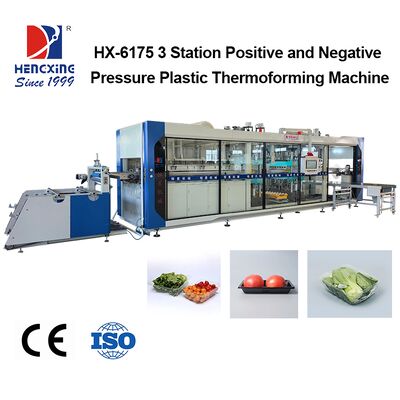

The HX-6175 Pressure Thermoforming Machine is an advanced vacuum forming system engineered for high-demand plastic manufacturing applications. This automatic fresh supermarket food packaging box making machine specializes in producing plastic fruit clamshells, meat trays, and various food containers from PP and PET sheets.
Advanced Thermoforming Technology

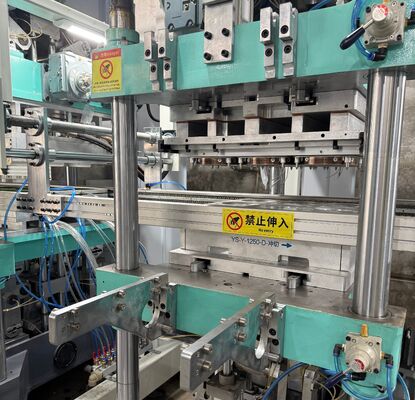

Engineered with precision and efficiency, this thermoforming machine combines powerful servo motor systems with advanced pressure forming technology. The forming station features robust servo motors with upward power of 5.5 KW and downward power of 4.5 KW, ensuring precise control and consistent product quality throughout the manufacturing process.
Key Technical Specifications

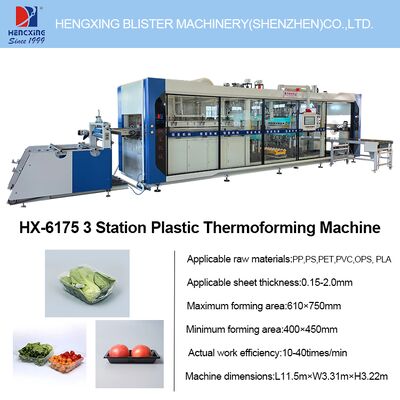

Brand & Model HengXing HX-6175
Maximum Forming Area 610 × 750 mm
Furnace Power 117 KW
Servo Motor Power Upward: 5.5 KW, Downward: 4.5 KW
Cooling System Mold circulating water cooling
Certifications CE, ISO
Premium Features
  • Superior Molding Quality: Dual pressure forming technique combining vacuum negative pressure with compressed air positive pressure for sharp edges and delicate textures
  • Deep Cavity Capability: Ideal for complex molding tasks including lunch boxes, fruit containers, and egg trays with even material distribution
  • High Production Efficiency: Servo drive systems with automated feeding, punching, and stacking mechanisms for continuous high-speed operation
  • Material Versatility: Compatible with PP, PET, rPET, and PLA plastics for standard and eco-friendly packaging solutions

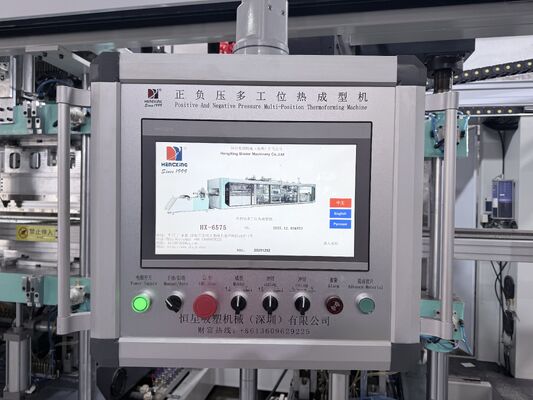

  • Advanced Automation: PLC intelligent control system with touchscreen interface for automated temperature regulation and maintenance
Industrial Applications
  • Food packaging and supermarket fresh produce containers
  • Disposable tableware and meal boxes
  • Medical device trays and packaging
  • Electronic product components and trays
  • Hardware tools packaging and industrial trays
  • Agricultural seedling trays and containers
Frequently Asked Questions
What is the brand and model number of this thermoforming machine?
Manufactured by HengXing, model number HX-6175
Where is the machine produced?
Produced in Guangdong, China
What certifications does the machine have?
CE and ISO certified, meeting European safety and quality standards
What is the minimum order quantity and pricing?
Minimum order quantity is 1 unit with a $15,000 deposit required
How is the machine packaged and what is the delivery time?
Securely packaged in wooden cases with approximately 45 working days delivery time
What payment methods are accepted?
L/C, T/T, Western Union, MoneyGram, D/A, and D/P
