| Brand Name: | HengXing |
| Model Number: | HX-6175 |
| MOQ: | 1 |
| Price: | 15000$(deposit) |
| Payment Terms: | L/C T/T Western Union MoneyGram D/A D/P |

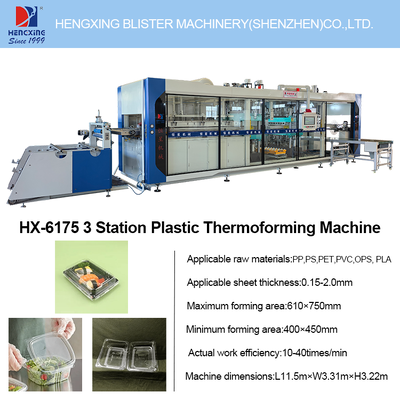

The HX-6175 Fully Automatic Positive and Negative Pressure Three Station Thermoforming Machine is engineered for high-efficiency production of premium plastic food trays and clamshell boxes. This advanced equipment delivers exceptional performance for demanding manufacturing environments.
| Specification | Details |
|---|---|
| Material Compatibility | PP, PS, PET, PVC, PLA, ABS |
| Material Width Range | 510-780mm |
| Material Thickness Range | 0.15-2.0mm |
| Maximum Molding Area | 750x610mm |
| Maximum Punching Area | 630x750mm |
| Positive Pressure Forming Depth | 140mm |
| Negative Pressure Forming Depth | 150mm |
| Maximum Punching Force | 60 tons |
| Production Speed | 10-40 cycles per minute |
| Power Consumption | 30-50KW/H |
| Machine Dimensions | 11m x 2.3m x 3.2m |
| Machine Weight | 15 tons |
This thermoforming machine integrates heating, forming, cutting, stacking, and counting functions with full automation. It features servo stretching technology ideal for products exceeding 50mm height, preventing wall thickness issues during stretching. The intelligent temperature control system provides rapid heating with 10% energy savings compared to traditional systems. Quick mold changes can be performed directly from the machine front, minimizing downtime.
Our technical support team provides installation guidance, operational training, troubleshooting, and maintenance services. We offer detailed user manuals, on-site service visits, and operator training sessions. Regular maintenance packages and spare parts inventory ensure continuous operation and minimize downtime.
Each machine is carefully packaged in protective materials and sturdy wooden crates to withstand shipping rigors. We offer sea freight, air freight, and land transportation options with detailed tracking information. All machines undergo thorough inspection and testing before dispatch.
