Direct Factory Price Plastic Vacuum Thermoforming Machine from China: Custom Mold Design & Global Shipping to Cairo

Name: Direct Factory Price Plastic Vacuum Thermoforming Machine from China: Custom Mold Design & Global Shipping to Cairo
Brand: Hengxing Blister Machinery (Shenzhen) Co., Ltd
SKU: HX-6175
Price: 15000 USD
Availability: InStock

Brand Name:	HengXing
Model Number:	HX-6175
MOQ:	1
Price:	15000$(deposit)
Payment Terms:	L/C T/T Western Union MoneyGram D/A D/P

Detail Information

Product Description

Detail Information

Certification:

CE & ISO

Pulling Tab Servo:

4.4KW Inovance Servo

Machinery Test Repor:

Provided

Airpressurerequirement:

0.6 - 0.8 MPa

Power Access:

AC 380V 50/60HZ

Operability:

Simple And Easy To Operate

Work Efficiency:

10-35 Times/minute

Maxsheetwidth:

760mm

Model:

HX-6175

Packaging Details:

Wooden Case

Highlight:

plastic vacuum thermoforming machine

custom mold thermoforming machine

pressure thermoforming machine with warranty

Product Description

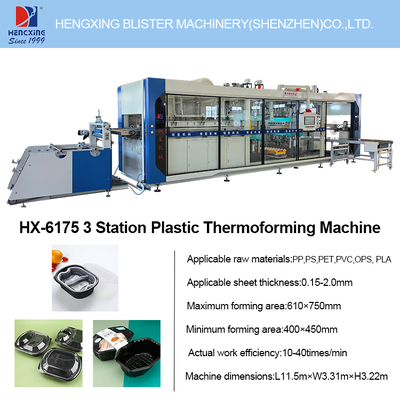

HX-6175 Fully Automatic Positive and Negative Pressure Three Station Thermoforming Machine

The HX-6175 is an advanced thermoforming equipment designed for processing various plastic materials, delivering efficient production and high-quality output for industrial applications.

Key Specifications

Parameter	Specification
Material Compatibility	PP, PS, PET, PVC, PLA, ABS
Material Width Range	510-780mm
Material Thickness Range	0.15-2.0mm
Maximum Molding Area	750x610mm
Maximum Punching Area	630x750mm
Positive Pressure Forming Depth	140mm
Negative Pressure Forming Depth	150mm
Maximum Production Speed	10-40 cycles/minute
Power Consumption	30-50KW/H
Machine Weight	15 tons
Dimensions	11m x 2.3m x 3.2m

Advanced Features

Broad Material Compatibility: Processes PP, PS, PET, PVC, PLA, and ABS materials
Precision Control: Accurate size and thickness control for consistent product quality
High-Speed Production: Maximum production speed of 10-40 cycles per minute
Deep Forming Capability: Positive pressure depth of 140mm, negative pressure depth of 150mm
Advanced Heating System: Three/four stage heating for uniform material heating
Efficient Cooling: Circulating water cooling system for precise temperature control
Energy Efficient: Low power consumption with intelligent temperature control
Robust Construction: 15-ton machine weight ensures stability and durability

Applications

This thermoforming machine integrates heating, forming, cutting, stacking, and counting functions with full automation. It features servo stretching technology ideal for products exceeding 50mm height, preventing material thinning during stretching processes.

The equipment operates at high speeds with mold forming completed in as little as 2 seconds. Quick mold changes can be performed directly from the front of the machine, saving time and labor.

Technical Support & Services

We provide comprehensive technical support including installation guidance, operational training, routine maintenance, and troubleshooting assistance. Our expert team helps optimize production parameters and resolve technical issues.

Scheduled maintenance services and equipment inspections
Spare parts and consumables tailored to your machine model
Technology upgrades to enhance productivity and quality
On-site and remote support to minimize downtime

Packaging & Shipping

Each machine is securely wrapped with protective materials and placed in sturdy wooden crates designed to withstand rough handling. We offer flexible shipping options including sea freight, air freight, and land transportation with reliable logistics partners.

Frequently Asked Questions

What is the brand and model number of this Pressure Thermoforming Machine?

Brand: HengXing, Model: HX-6175

Where is the machine manufactured?

Manufactured in Guangdong, China

What certifications does the HX-6175 have?

CE and ISO certified

What are the payment terms and delivery time?

Minimum order: 1 unit with $15,000 deposit. Payment options: L/C, T/T, Western Union, MoneyGram, D/A, D/P. Delivery: Approximately 45 work days.
