| Brand Name: | HengXing |

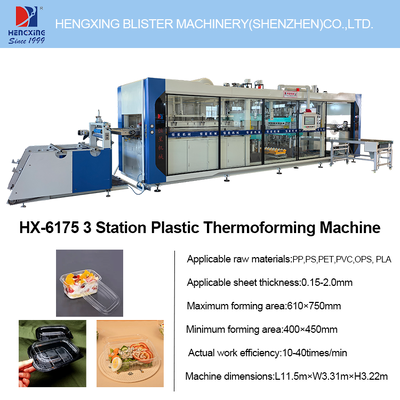

| Model Number: | HX-6175 |
| MOQ: | 1 |
| Price: | 15000$(deposit) |
| Payment Terms: | L/C T/T Western Union MoneyGram D/A D/P |
| Material Compatibility | PP, PS, PET, PVC, PLA, and other plastic materials |
|---|---|
| Material Width Range | 510-780mm |
| Material Thickness Range | 0.15-2.0mm |
| Maximum Molding Area | 750x610mm |
| Minimum Molding Area | 400x450mm |
| Maximum Punching Area | 630x750mm |
| Forming & Punching Stroke | 0-150mm |
| Positive Pressure Forming Depth | 140mm |
| Negative Pressure Forming Depth | 150mm |
| Stacking Mechanism Stroke | ≤ 500mm |
| Maximum Punching Force | 60 tons (with mold heating system) |
| Power Consumption | 30-50KW/H |
| Production Speed | 10-40 cycles per minute |
| Maximum Roll Diameter | 700mm (500KG weight) |
| Machine Weight | 15 tons |
| External Dimensions | 11m x 2.3m x 3.2m |
| Gas Source Requirements | ≥ 5.5m³/min at 0.6-0.8MPa |
