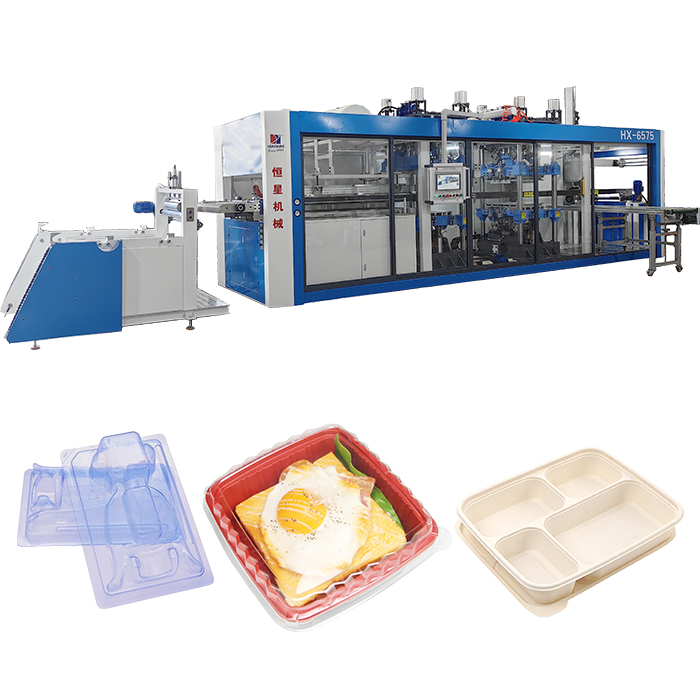

This new style multi-station thermoforming machine is suitable for multiple materials including disposable plastic plates, containers, and various packaging applications. Designed with advanced German technology, it offers fully automatic operation for heating, forming, cutting, and stacking counting processes.
Machine Introduction
The positive and negative pressure multi-station forming machine is an innovative product developed with the latest German technology for packaging, food, electronics, and other industries. This machine can process various vacuum-formed packaging products made from PET, PP, PC, PS, PVC, BOPS, PLA, corn starch, and other materials, producing items such as bowls, lids, boxes, plates, electronic trays, and pharmaceutical packaging.
Key Features
Control System
Ultra-high definition MCGS color IoT touch screen interface with remote monitoring and troubleshooting capabilities
Self-developed system with fast operation up to 50 modes/minute and intuitive operation
Comprehensive monitoring, counting, automatic lubrication, and maintenance prompt functions
Automatic data saving for mold height, cutting position, and beam width with rapid production capabilities
Quick mold changing and machine adjustment - over 30 minutes faster than square station models
Manipulator System
High-power torque servo for up, down, left, and right movement with 24-hour continuous operation capability
Multiple stacking modes: up and down stacking, lifting and stacking, in-mold grasping, and out-of-mold grasping
Flexible discharge modes: side or straight out discharge to adapt to various site requirements
Material Receiving System
Latest torque reducer ensures powerful winding with simple, easy-to-adjust controller, eliminating motor burnout issues common with traditional frequency conversion control.
Chain Rail Drive System
Large power servo for sheet pulling, capable of handling up to 2.0mm thick sheets
High-precision reducer and spline shaft transmission with pulling error within ±0.5mm
Aluminum body girder with guide beads for enhanced abrasion resistance
Japanese CHOHO guide bead chain for stable, wear-resistant, and accurate pulling
Convenient front, middle, and rear electric adjustment of the girder
Cooling System
Standard 10P supercharged air-cooled chiller provides superior cooling effect and faster delivery speed.
Vacuum System
Jingjie 200 m³/H vacuum pump with 0.4m³ vacuum tank designed for instant vacuum release, enabling faster product formation and superior product quality.
Lubrication System
High-capacity, high-pressure lubricating pump reduces manual oil loading frequency
Food-grade chain oil lubrication system reduces wear on packaging chain
