Positive And Negative Pressure Plastic Forming Machinery
,
PLC Control Pressure Plastic Forming Machinery
,
Pressure Plastic Forming Machinery 3 Station
Product Description
PLC Control Positive and Negative Pressure Plastic Forming Machinery

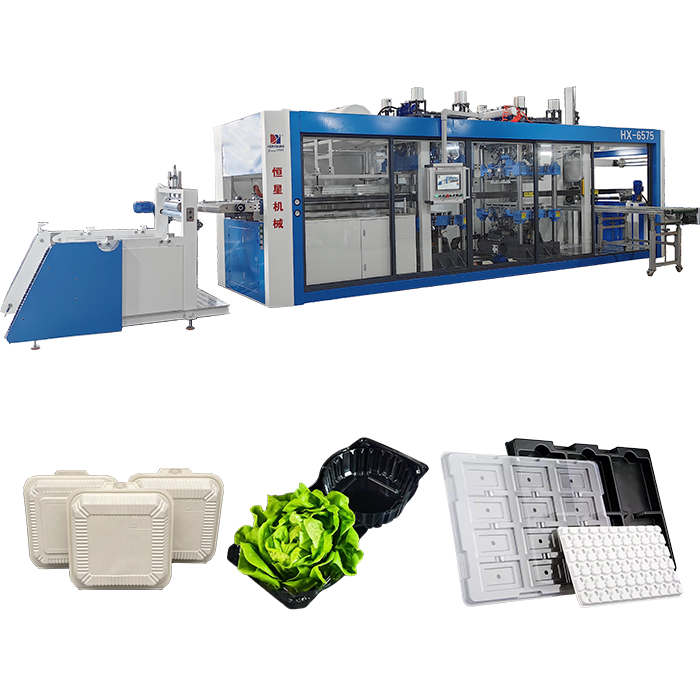

HX 6575 3 Station Positive and Negative Pressure Thermoforming Machine - New Style
Machine Introduction
This innovative positive and negative pressure multi-station forming machine incorporates advanced German technology for packaging, food, electronics, and various industrial applications. The fully automated system performs heating, forming, cutting, and stacking counting operations in three stations. Compatible with PET, PP, PC, PS, PVC, BOPS, PLA, corn starch, and other materials, it produces vacuum-formed packaging products including bowls, lids, boxes, plates, electronic trays, and pharmaceutical containers.
The machine offers wide applicability, strong universality, high-speed operation, low energy consumption, minimal noise, superior safety and hygiene standards, and easy operation and maintenance.
Key Features
Control System Characteristics
High-definition MCGS color IoT touch screen interface with remote monitoring, troubleshooting, and program upgrade capabilities
Self-developed system optimized for operational efficiency with testing speeds up to 50 modes/minute
Automatic data saving for mold heights, cutting positions, and beam widths enables rapid production setup
Mold changing and machine adjustment 30+ minutes faster than square station models
Loading Area
2.2KW high-power feeding motor supports maximum roll diameter of 700mm and capacity of 500KG. Features rubber roller transmission, seamless steel pipe material rods, and silicone oil spraying device for easy demolding.
Heating Area
Special aluminum furnace design resistant to high-temperature deformation
Swedish Cornell heating wires for fast heating, stable temperature, and long service life (5-year warranty)
Japanese temperature control modules for precise temperature management
Extended electric furnace design ensures mold centering and reduces workstation wear
Forming Area
Forming dimensions: 650mm × 750mm with four-section upper/lower furnace heating
Maximum molding height: 150mm
High-power servo motors for both upper and lower molds enable 24-hour continuous operation
Automatic water valve supply prevents mold condensation during shutdowns
Side-mounted automatic mold locking reduces changeover time
Mold height memory system eliminates adjustment requirements for repeat production
Cutting Area
Cutting size: 650mm × 750mm with heated knife electric control system
High-power servo motors handle various material thicknesses with ease
Side-mounted automatic mold locking for quick changeovers
Digital cutting depth adjustment and position data saving prevent knife damage and product waste
Vacuum System
High-flow vacuum pump with large tank design meets instantaneous vacuum release requirements and improves product molding quality.
Lubrication System
High-capacity, high-pressure lubricating pump reduces manual refilling frequency
Requires 00# grease for optimal performance
Food-grade chain oil lubrication system reduces packaging chain wear
