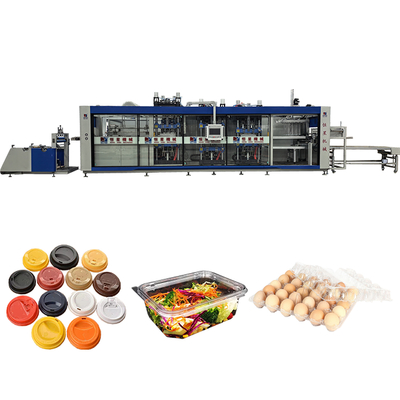

Four Station Pressure Plastic Thermoforming Machine Multi Stage Heating

The positive and negative pressure multi-station forming machine is an innovative product developed with the latest German technology for packaging, food, electronics, and other industries. This fully automatic machine performs heating, forming, cutting, and stacking counting functions, adapting to various vacuum-formed packaging products made of PET, PP, PC, PS, PVC, BOPS, PLA, corn starch, and other materials.

• Human-machine interface features an ultra-high definition MCGS color IoT touch screen with remote monitoring and troubleshooting capabilities
• Self-developed system with fast testing capability (50 modes/minute) and intuitive operation
• Includes monitoring and counting, automatic lubrication, vacuum maintenance prompts, and document storage functions
• Automatic mold height data saving for rapid production setup

• 2.2KW high-power motor feeding system with 700mm max roll diameter capacity
• Rubber roller transmission with silicone oil spraying device for easy demolding

• Special aluminum furnace design resistant to high-temperature deformation
• Swedish Cornell heating wire with fast heating and excellent constant temperature effect
• Japanese temperature control module for precise temperature management

• 650mm × 750mm forming area with 150mm maximum molding height
• High-power servo motors for continuous 24-hour operation
• Automatic water supply system to prevent mold condensation

• 650 × 750mm cutting size with heated knife electric control system
• High-power servos for powerful cutting of various material thicknesses
• Automatic mold locking for quick changeovers

• High-power servo motors for burr-free punching
• Quick mold change system with height memory function

High flow vacuum pump with large tank design for instantaneous vacuum release and improved product molding quality.

• High-capacity, high-pressure lubricating pump for reduced maintenance
• Food-grade chain oil lubrication system to minimize wear
