| Brand Name: | HengXing |
| Model Number: | HX-7185 |
| MOQ: | 1 |
| Price: | USD：15000 $ (deposit) |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,D/A,D/P |
| Attribute | Value |
|---|---|
| Model | HX-6575 |
| Applicable raw materials | PET, PP, PC, PS, PVC, BOPS, PLA, Degradable corn starch, etc |
| Production efficiency | 10-35 mold/min |
| Maximum molding die area | 650×750mm |
| Minimum forming die area | 400×450mm |
| Maximum punching area | 650×750mm |
| Applicable sheet width | 510-760mm |
| Applicable sheet thickness | 0.15-2.0mm |
| Maximum cutting force of cutting station | 60T |
| Height of formed products | Max 150mm |
| Operating Weight | 13T |
| External dimensions | L11.5×W3.31×H3.22 m |
| Cooling method | The mold is cooled by circulating water |
| Rated power of electric furnace | 117kw (actual consumption 30-50%) |
| Client air source (external configuration) | Air supply ≥ 5.5m³/Min air pressure 0.6~0.8Mpa |

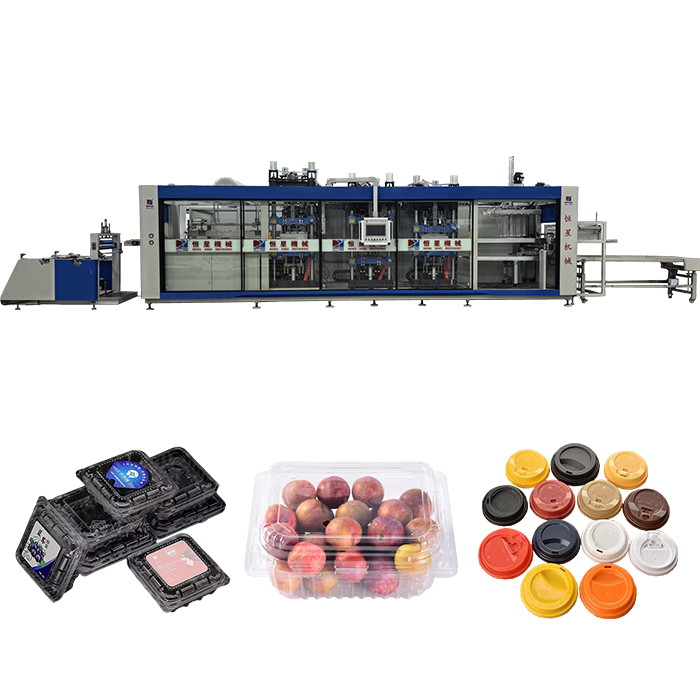

The positive and negative pressure multi-station forming machine is an innovative product developed with the latest German technology for packaging, food, electronics, and other industries. This fully automated machine performs heating, forming, cutting, and stacking counting functions in one integrated process.
