50KW Plastic Cup Making Machine Adjustable Parameters For Multiple Materials

50KW Plastic Cup Making Machine Adjustable Parameters For Multiple Materials

Brand Name:	HengXing
Model Number:	HX-760B
MOQ:	1 pcs
Price:	USD 13999$ (deposit)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Plastic Type:

PVC, PS, PP, PET

Key Selling Points:

2000

Core Components:

Engine, Bearing, Gearbox, Motor

Product Type:

Plastic Cup

Dimension(l*w*h):

4.3X1.7X2.8m

Voltage:

380V/3P/50HZ

Forming Width (mm):

320 Mm

Forming Length (mm):

160 Mm

Weight (t):

Max.forming Height(mm):

180 Mm

Heating Power (kw):

35 KW

Production Speed(cycles/m:

25.0-45.0cycles/min

Power(kw):

50 KW

Forming Area:

760*320mm

Air Pressure:

0.6~0.8Mpa

Driving Method:

Cam + Servo Motor

Sheet Width:

W=760mm (adjustable)

Sheet Thickness:

0.2-2.5mm

Selling Units:

Single Item

Packaging Details:

wooden case

Supply Ability:

1 pcs

Highlight:

50KW Plastic Cup Making Machine

Adjustable Parameters Plastic Cup Making Machine

50KW plastic cup thermoforming machine

Product Description

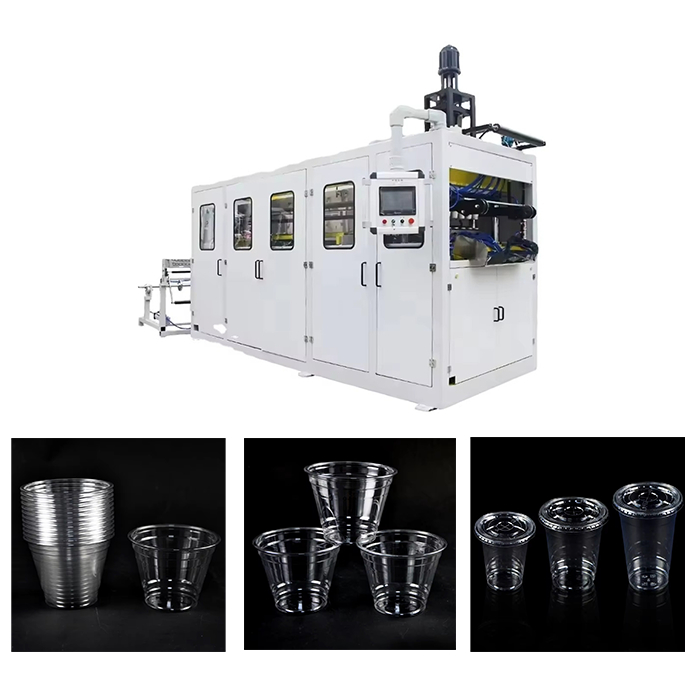

HX Plastic Cup Making Machine Suitable For Multiple Materials Automatic Thermoforming Machine

Product Specifications

Attribute	Value
Plastic Type	PVC, PS, PP, PET
Core Components	Engine, Bearing, Gearbox, Motor
Product Type	Plastic Cup
Dimensions (L×W×H)	4.3 × 1.7 × 2.8 m
Voltage	380V/3P/50HZ
Forming Width	320 mm
Forming Length	160 mm
Weight	8T
Max. Forming Height	180 mm
Heating Power	35 kW
Production Speed	25.0-45.0 cycles/min
Power	50 kW
Forming Area	760 × 320 mm
Air Pressure	0.6~0.8Mpa
Driving Method	Cam + servo motor
Sheet Width	W=760mm (adjustable)
Sheet Thickness	0.2-2.5mm
Selling Units	Single item

Key Features

Cost Efficiency: High production capacity reduces per-unit costs, enabling 24/7 operation with minimal manpower for improved resource utilization.
Material Versatility: Processes PP, PS, PET, PVC, and PLA materials for diverse cup production including disposable, beverage, and specialty cups.
Advanced Heating System: Equipped with infrared ceramic heaters and PID temperature control for uniform heat distribution and precise temperature regulation.
Flexible Production: Supports transition from mass production to intelligent manufacturing for small-batch, high-variety market demands.
Market Expansion: Enables entry into high-value sectors including food service, packaging, and medical supplies with superior product quality.

Technical Advantages

Precision-engineered forming area (760×320mm) with adjustable parameters for diverse product requirements
High-speed servo motor drive system delivering 25-45 cycles per minute production capacity
Energy-efficient operation with 50kW power consumption and optimized thermal management
Robust construction with 8-ton weight for stable, vibration-free operation
Comprehensive process control for thicknesses ranging from 0.2mm to 2.5mm
