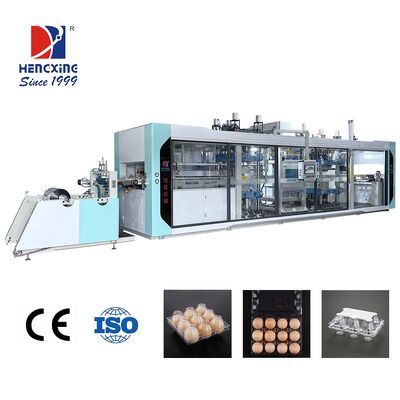

High-Speed Pressure Thermoforming Machine with 610mm Forming Width and Circulating Water Cooling for Efficient Plastic Shaping

High-Speed Pressure Thermoforming Machine with 610mm Forming Width and Circulating Water Cooling for Efficient Plastic Shaping

Brand Name:	HengXing
Model Number:	HX-6175
MOQ:	1
Price:	15000$(deposit)
Payment Terms:	L/C T/T Western Union MoneyGram D/A D/P

Detail Information

Product Description

Detail Information

Certification:

Operating Weight:

12T

External Dimensions:

L11×W2.0×H2.75m

Speed:

10-35 Times/min

Power:

380V Three-phase Four Wire 50/60HZ

Production Efficiency:

10-35 Mold/min

Machinedimensions:

11000mm X 2000mm X 2750mm

Forming Length:

750mm

Applicable Raw Materials:

PP,PS,PET,PVC,OPS, PLA

Packaging Details:

Wooden Case

Highlight:

10-35 Times/min Speed Pressure Thermoforming Machine

610mm Forming Width Vacuum Forming Machine

Circulating Water Cooling Plastic Thermoforming Machine

Product Description

High-Speed Pressure Thermoforming Machine

This advanced pressure thermoforming machine delivers exceptional performance with a production speed of 10-35 cycles per minute and a forming width of 610mm. Engineered for high-efficiency vacuum forming applications, it's particularly suited for disposable plastic cup manufacturing and other molded plastic products.

Key Features

Production Efficiency: 10-35 molds per minute
Operating Weight: 12 tons
Power Supply: 380V Three-phase Four Wire 50/60HZ
External Dimensions: 11,000mm × 2,000mm × 2,750mm
Forming Width: 610mm
High-performance vacuum forming for various applications
Precision engineering for durability and consistent output

Technical Specifications

Parameter	Specification
Forming Length	750mm
Machine Type	Multi-Function Plastic Forming Machine
Power Requirements	380V Three-phase Four Wire 50/60HZ
Machine Dimensions	11,000mm × 2,000mm × 2,750mm
Forming Width	610mm
Cooling System	Water-Circulated Mold Cooling
Sheet Thickness Range	0.15-2.0mm
Maximum Product Height	120mm

Compatible Materials

PP (Polypropylene) PS (Polystyrene) PET (Polyethylene Terephthalate) PVC (Polyvinyl Chloride) OPS (Oriented Polystyrene) PLA (Polylactic Acid)

Advanced Cooling Technology

The integrated water-circulated cooling system ensures rapid mold temperature control, enhancing production speed while maintaining dimensional stability and superior surface finish for all molded products.

Industrial Applications

This versatile thermoforming machine serves multiple industries including food packaging, medical supplies, and consumer goods manufacturing. It excels as an ABS forming machine, plastic bowl making machine, and PET forming machine, providing reliable performance across diverse production requirements.

Technical Support & Services

We provide comprehensive technical support including installation guidance, operator training, maintenance scheduling, and troubleshooting assistance. Our team offers customization services and process optimization consulting to maximize your production efficiency and equipment longevity.
