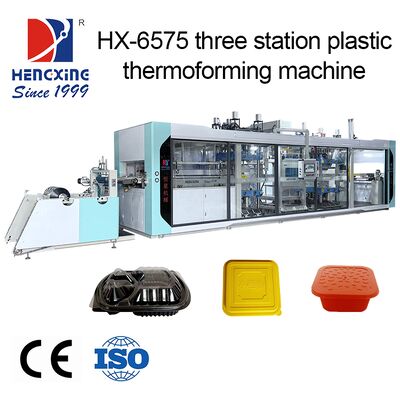

117 KW Rated Power Pressure Thermoforming Machine with PET Material Compatibility and Inovance System Touch Display Screen

117 KW Rated Power Pressure Thermoforming Machine with PET Material Compatibility and Inovance System Touch Display Screen

Brand Name: HengXing
Model Number: HX-6575
MOQ: 1
Price: 15000$(deposit)
Payment Terms: L/C T/T Western Union MoneyGram D/A D/P
Detail Information
Product Description
Detail Information
Certification:
CE
Maximum Forming Area:
650*750 Mm
Rated Power:
117 KW
Material Thicknes:
0.15-2.0mm
Operating Weight:
13T
External Dimensions:
L11.5×W3.31×H3.22m
Marketing Type:
New Product 2026
Product:
Plastic Clamshell ,lid,tray,bowl And Plate Etc.
Heatingzone:
Three-stage Heating, Upper And Lower Furnace Heating
Packaging Details:
Wooden Case
Highlight:

117 KW Rated Power Pressure Thermoforming Machine

,

PET Material Compatibility Vacuum Thermoforming Machine

,

Inovance System Touch Display Screen Plastic Thermoforming Machine

Product Description
Rated Power 117 KW Pressure Thermoforming Machine
This advanced pressure thermoforming machine delivers precision forming of plastic materials with exceptional efficiency. Engineered for demanding industrial applications, it specializes in producing disposable plastic cups, blister packs, and various containers with material thickness compatibility from 0.15mm to 2.0mm.
Key Capabilities
With a maximum forming depth of 120mm, this machine creates complex shapes with uniform material distribution and consistent quality. The 117 KW rated power system ensures rapid heating cycles and reduced production times, making it ideal for high-volume manufacturing environments.
Advanced Control System
The integrated Inovance System with touch display screen provides intuitive control over all machine parameters. Operators can easily adjust temperature, forming time, and pressure settings while monitoring real-time performance metrics for optimal production efficiency.
Technical Features
  • Product Name: Pressure Thermoforming Machine
  • Material Compatibility: Plastic Sheets (PVC, PET, PS, PP)
  • Material Thickness Range: 0.15-2.0mm
  • Pulling Tab Servo: 4.4KW Inovance Servo for precise control
  • Rated Power: 117 KW
  • Applications: ABS forming, vacuum forming, disposable plastic cup production
Technical Specifications
Marketing Type New Product 2026
External Dimensions L11.5*W3.31*H3.22m
Product Output Plastic Clamshell, Lid, Tray, Bowl and Plate Etc.
Material Compatibility Plastic Sheets (PVC, PET, PS, PP)
Weight 3000KG
Maximum Forming Area 650*750 mm
Heating Zone Three-stage Heating, Upper and Lower Furnace Heating
Operating Weight 13T
Max Forming Depth 120 mm
Industrial Applications
The HengXing HX-6575 Pressure Thermoforming Machine serves as specialized equipment for plastic tea cup production and versatile vacuum forming applications. Its robust construction and advanced control systems make it suitable for packaging, automotive parts, and consumer goods manufacturing industries.
Customization & Ordering
HengXing HX-6575 Model Details:
• CE Certified for safety and reliability
• Minimum Order Quantity: 1 unit
• Deposit Price: $15,000
• Delivery Time: 45 working days
• Payment Terms: L/C, T/T, Western Union, MoneyGram, D/A, D/P
• Packaging: Secure wooden case
• Origin: Guangdong, China
