products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.

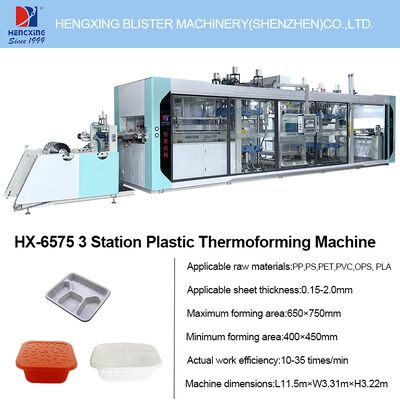

Pressure Thermoforming Machine
Created with Pixso.

Automatic Thermoforming Machine for Food Packaging - PET/PP/PS Material High Speed Vacuum Forming Machine for Food Tray Production Multi-Station Thermoforming Machine for Disp

Automatic Thermoforming Machine for Food Packaging - PET/PP/PS Material High Speed Vacuum Forming Machine for Food Tray Production Multi-Station Thermoforming Machine for Disp

Brand Name: HengXing
Model Number: HX-6575
MOQ: 1
Price: 15000$(deposit)
Payment Terms: L/C T/T Western Union MoneyGram D/A D/P
Detail Information
Product Description
Detail Information
Certification:
CE
Overall Weight:
Approximately 13 T
Formingarea:
650mm X 750mm
Heating System:
Ceramic Heating, Point-to-point Control
Chiller:
15P Air-cooled Chiller
Maxsheetwidth:
760mm
Touch Screen Display:
MCGS 15-inch HD Touchscreen (fast Response, No Lag)
Power Access:
AC 380V 50/60HZ
Forming Station Servo:
4.5 KW
Packaging Details:
Wooden Case
Highlight:

15-inch HD Touchscreen Pressure Thermoforming Machine

,

4.5 KW Servo Forming Station Vacuum Forming Machine

,

650mm X 750mm Forming Area Plastic Thermoforming Machine

Product Description
MCGS 15-inch HD Touchscreen Pressure Forming Machine
This advanced pressure thermoforming machine features a 45 KW servo forming station designed for high-precision plastic thermoforming applications. Engineered for modern manufacturing environments, this vacuum forming machinery delivers exceptional precision, efficiency, and reliability in producing disposable plastic trays, containers, and various plastic products.
Key Features
  • 15-inch MCGS HD touchscreen display with fast response and zero lag
  • 45 KW servo forming station for smooth, accurate operations
  • Three-stage heating with upper and lower furnace heating
  • Maximum sheet width: 760mm
  • Mold cooling via circulating water system
  • Integrated auto-stacking system
  • Robust 13-ton frame for operational stability
  • Lifetime service support
Technical Specifications
Parameter Specification
Maximum Sheet Width 760 mm
Power Access AC 380V 50/60HZ
Vacuum Pump Jingjie 200 m³/H
Work Efficiency 10-35 Times/minute
Overall Weight Approximately 13 Tons
Forming Area 650 mm * 750 mm
Chiller 15P Air-cooled Chiller
Touch Screen Display MCGS 15-inch HD Touchscreen
Applications
This versatile pressure thermoforming machine is ideal for various industrial applications including disposable plastic container manufacturing, blister packaging for electronics, and general vacuum forming operations. The HX-6575 model features ceramic heating with point-to-point control and automatic stacking capabilities, making it suitable for both small-scale and large-scale production environments.
Support & Services
Comprehensive technical support includes installation assistance, setup guidance, troubleshooting, and maintenance schedules. Our team provides on-site service visits, remote diagnostics, and regular training sessions. Spare parts and consumables are readily available, along with software updates to enhance machine functionality.
Packing & Shipping
Each unit is securely packaged with protective foam and enclosed in sturdy wooden crates. Multiple shipping options including sea freight, air freight, and land transportation are available, handled by experienced logistics partners to ensure safe and timely delivery.
Manufacturing Details: Certified with CE standards, manufactured in Guangdong, China. Minimum order quantity: 1 unit. Delivery within approximately 45 workdays.
