Electronic Component Blister Packaging Machine Anti-Static Plastic Tray Thermoforming Equipment for Electronics, Hardware & Tools Inner Inlays

Name: Electronic Component Blister Packaging Machine Anti-Static Plastic Tray Thermoforming Equipment for Electronics, Hardware & Tools Inner Inlays
Brand: Hengxing Blister Machinery (Shenzhen) Co., Ltd
SKU: HX-6175
Price: 15000 USD
Availability: InStock

Brand Name:	HengXing
Model Number:	HX-6175
MOQ:	1
Price:	15000$(deposit)
Payment Terms:	L/C T/T Western Union MoneyGram D/A D/P

Detail Information

Product Description

Detail Information

Certification:

Maximum Forming Area:

610*750 Mm

Machine Weight:

15000 Kg

Machinery Test Repor:

Provided

Forming Station Servo:

Up 5.5 KW Down 4.5 KW

Customize:

Customization Supported

Power:

380V Three-phase Four Wire 50/60HZ

Motor:

Servo Motor

Furnace Power:

117KW

Packaging Details:

Wooden Case

Highlight:

Anti-static plastic tray thermoforming machine

Electronic component blister packaging equipment

Hardware tools inner inlays thermoformer

Product Description

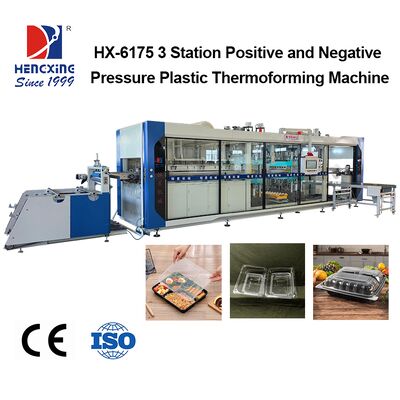

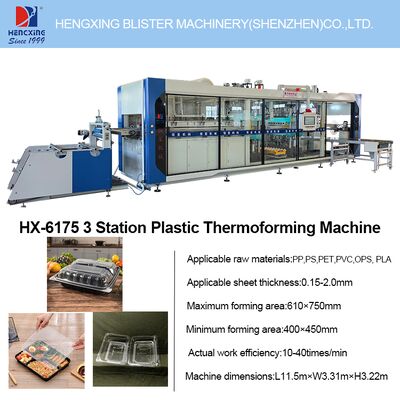

Electronic Component Blister Packaging Machine

Advanced anti-static plastic tray thermoforming equipment designed for electronics, hardware, and tools inner inlays with precision forming capabilities.

Product Overview

The Pressure Thermoforming Machine is an advanced, highly efficient industrial equipment designed for modern plastic forming applications. This versatile machine serves as a plastic vacuum molding machine, blister vacuum forming machine, and plastic bowl making machine, delivering exceptional performance across various manufacturing requirements.

Technical Specifications

Brand	HengXing
Model Number	HX-6175
Furnace Power	117KW
Heating System	Ceramic Heating Elements
Control System	Inovance Intelligent Control
Drive System	Servo Motor Driven
Cooling System	Mold Through Circulating Water Cooling
Certification	CE Certified

Key Features

Excellent Molding Effect: Dual forming technique combining vacuum negative pressure with compressed air positive pressure ensures tight mold adhesion, clearly defined edges, and fine texture details for superior product quality.
Deep Cavity Capability: Uniform material distribution for complex moldings and deep-cavity products, minimizing issues like thin bottoms, deformation, or cracking.
High Production Efficiency: Servo drives with automatic feeding, punching, and stacking systems enable continuous high-speed operation for large-scale manufacturing.
Material Versatility: Compatible with PP, PET, rPET, and PLA materials, supporting both conventional and eco-friendly packaging requirements.

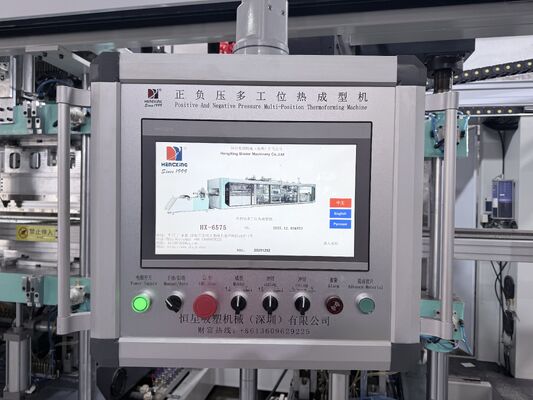

Advanced Automation: PLC intelligent control system with touch screen interface, automatic temperature regulation, alarm functions, and lubrication systems for simplified operation.
Precision Heating Control: Point-to-point control heating system with individual zone management for precise temperature control and energy efficiency.

Applications

Food packaging and disposable tableware
Fresh produce packaging for supermarkets
Medical device trays and packaging
Electronic component thermoformed trays
Hardware tools packaging and inlays
Agricultural seedling production trays
Industrial tray fabrication
Specific products: meal containers, fruit packaging, cake trays, egg cartons, coffee cup lids, medical instrument trays, tool packaging

Frequently Asked Questions

What is the brand and model number of this Pressure Thermoforming Machine?

The Pressure Thermoforming Machine is branded HengXing, and the model number is HX-6175.

Where is the HX-6175 Pressure Thermoforming Machine manufactured?

This machine is manufactured in Guangdong, China.

Does the HX-6175 Pressure Thermoforming Machine have any certifications?

Yes, the machine is CE certified, ensuring it meets European safety and quality standards.

What is the minimum order quantity and the price for the HX-6175?

The minimum order quantity is 1 unit, and the price requires a deposit of $15,000.

How is the machine packaged and what is the estimated delivery time?

The machine is securely packaged in a wooden case, and the estimated delivery time is 45 work days.

What payment terms are accepted for purchasing the HX-6175?

Accepted payment terms include L/C, T/T, Western Union, MoneyGram, D/A, and D/P.
