products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Pressure Thermoforming Machine
Created with Pixso.

Industrial PLC Controlled Vacuum Forming Equipment for Heavy-Duty Production: Stable Running, Low Maintenance Cost

Industrial PLC Controlled Vacuum Forming Equipment for Heavy-Duty Production: Stable Running, Low Maintenance Cost

Brand Name: HengXing
Model Number: HX-6175
MOQ: 1
Price: 15000$(deposit)
Payment Terms: L/C T/T Western Union MoneyGram D/A D/P
Detail Information
Product Description
Detail Information
Certification:
CE & ISO
Forming Length:
750 Mm
Power Access:
AC 380V 50/60HZ
Pulling Tab Servo:
4.4KW Inovance Servo
Machinery Test Repor:
Provided
Operability:
Simple And Easy To Operate
Maxsheetwidth:
760mm
Core Components:
PLC, Servo Motor
Forming Width:
610 Mm
Packaging Details:
Wooden Case
Highlight:

Industrial PLC vacuum forming machine

,

Heavy-duty vacuum forming equipment

,

Low maintenance thermoforming machine

Product Description
Industrial PLC Controlled Vacuum Forming Equipment

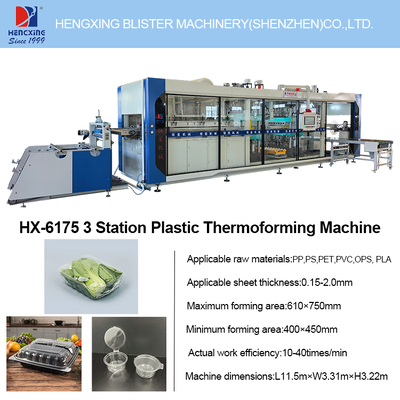

HX-6175 Fully Automatic Positive and Negative Pressure Three Station Thermoforming Machine - designed for heavy-duty production with stable running performance and low maintenance costs.
Key Features & Specifications
  • Material Compatibility: Processes PP, PS, PET, PVC, PLA, and other plastic materials
  • Precision Control: Material width range 510-780mm, thickness range 0.15-2.0mm
  • High Efficiency: Maximum production speed of 10-40 cycles per minute
  • Advanced Forming: Positive pressure depth 140mm, negative pressure depth 150mm
  • Powerful Cutting: Maximum punching force of 60 tons with mold heating system
  • Energy Efficient: Power consumption approximately 30-50KW/H
Specification Details
Maximum Forming Area 750x610mm
Minimum Forming Area 400x450mm
Maximum Punching Area 630x750mm
Stacking Mechanism Stroke ≤ 500mm
Roll Capacity Maximum diameter 700mm, weight 500KG
Machine Weight 15 tons
Dimensions 11m x 2.3m x 3.2m
Gas Requirements Gas volume ≥ 5.5m³/min, pressure 0.6~0.8MPa
Applications
This thermoforming machine integrates heating, forming, cutting, stacking, and counting automation functions. It features servo stretching technology ideal for products exceeding 50mm height, preventing material thinning during stretching. The intelligent temperature control system provides rapid heating with at least 10% energy savings compared to traditional systems. Front-accessible mold changes enable quick setup and efficient production transitions.
Technical Support & Services
Comprehensive support includes detailed installation guidance, operator training, and customized maintenance schedules. Our expert technicians provide troubleshooting, repairs, system upgrades, and genuine replacement parts. Engineering collaboration available for customized solutions to enhance productivity and product quality.
Packing & Shipping
Each machine is securely wrapped with protective materials and crated in sturdy wooden cases. Multiple shipping options available including sea freight, air freight, and land transportation. All shipments include full tracking and are handled by experienced logistics partners. Complete documentation and support contacts included.
Frequently Asked Questions
What is the brand and model number?
Manufactured by HengXing, model HX-6175.
Where is this machine manufactured?
Produced in Guangdong, China.
What certifications does it have?
CE and ISO certified.
What are the order and payment details?
Minimum order: 1 unit. Deposit: $15,000. Payment methods: L/C, T/T, Western Union, MoneyGram, D/A, D/P.
What is the delivery timeline?
Approximately 45 work days. Packaged in wooden cases.
