Pressure Thermoforming Machine
Created with Pixso.

Positive Negative Pressure Plastic Thermoforming Machine for 2mm Fruit Tray Cup Packaging Production Line | Manufacturer

Positive Negative Pressure Plastic Thermoforming Machine for 2mm Fruit Tray Cup Packaging Production Line | Manufacturer

Brand Name: HengXing
Model Number: HX-6175
MOQ: 1
Price: 15000$(deposit)
Payment Terms: L/C T/T Western Union MoneyGram D/A D/P
Detail Information
Product Description
Detail Information
Certification:
CE & ISO
Core Components:
PLC, Servo Motor
Power Access:
AC 380V 50/60HZ
Pulling Tab Servo:
4.4KW Inovance Servo
Forming Width:
610 Mm
Machinery Test Repor:
Provided
Work Efficiency:
10-35 Times/minute
Pulling Motor:
4.5KW
Cooling Mode:
The Mold Is Cooled By Circulating Water
Packaging Details:
Wooden Case
Highlight:

Positive Negative Pressure Thermoforming Machine for Fruit Tray

,

Plastic Thermoforming Machine for 2mm Packaging

,

Fruit Cup Packaging Production Line with Warranty

Product Description

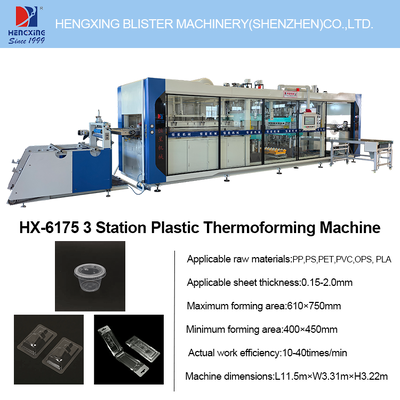

HX-6175 Fully Automatic Positive and Negative Pressure Thermoforming Machine
The HX-6175 is an advanced three-station thermoforming machine designed for efficient production of high-quality plastic packaging products, including fruit trays and cups up to 2mm thickness.
Key Features & Specifications
  • Material Compatibility: Processes PP, PS, PET, PVC, PLA, ABS and other plastic materials
  • Material Range: Width 510-780mm, thickness 0.15-2.0mm
  • Forming Capabilities: Maximum forming area 750x610mm, positive pressure depth 140mm, negative pressure depth 150mm
  • Production Speed: 10-40 cycles per minute for high-volume output
  • Punching Force: 60-ton maximum punching capacity with mold heating system
  • Energy Efficient: 30-50KW/H power consumption with advanced heating system
  • Roll Capacity: Supports rolls up to 700mm diameter and 500kg weight
Specification Details
Machine Dimensions 11m x 2.3m x 3.2m
Machine Weight 15 tons
Air Requirements ≥ 5.5m³/min at 0.6-0.8MPa
Stacking Mechanism ≤ 500mm stroke
Heating System Three/four stage heating with circulating water cooling
Applications & Performance
This fully automated machine integrates heating, forming, cutting, stacking, and counting functions. It features servo stretching technology ideal for products exceeding 50mm height, preventing wall thickness issues during stretching.
The intelligent temperature control system provides rapid heating with at least 10% energy savings compared to traditional systems. Quick mold changes can be performed directly from the machine front, minimizing downtime.
Technical Support & Services
We provide comprehensive technical support including machine setup, operation guidance, troubleshooting, and maintenance. Services include detailed user manuals, video tutorials, software updates, calibration procedures, and customization options.
Onsite services available: installation, staff training, preventive maintenance, and repairs to minimize downtime and maximize productivity.
Packaging & Shipping
Machines are securely packaged with protective foam and plastic covers, then placed in sturdy wooden crates reinforced with metal brackets. All moving parts are locked for safe transit.
Worldwide shipping options available via sea, air, or land freight with full tracking. Export documentation and customs clearance support included. Inspection recommended within 48 hours of receipt.
Frequently Asked Questions
What is the brand and model number?
HengXing HX-6175 Pressure Thermoforming Machine
Where is it manufactured?
Guangdong, China
What certifications does it have?
CE and ISO certified for international quality and safety standards
What is the minimum order quantity and pricing?
Minimum order: 1 unit with $15,000 deposit required
What are the delivery details?
Approximately 45 work days delivery, packaged in wooden cases
What payment methods are accepted?
L/C, T/T, Western Union, MoneyGram, D/A, D/P
