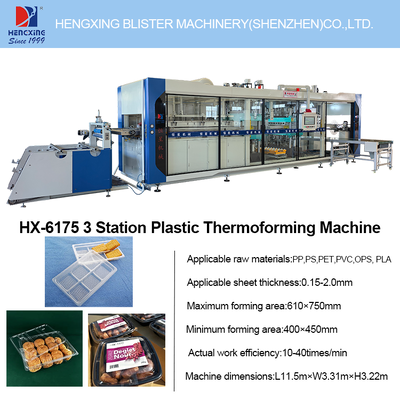

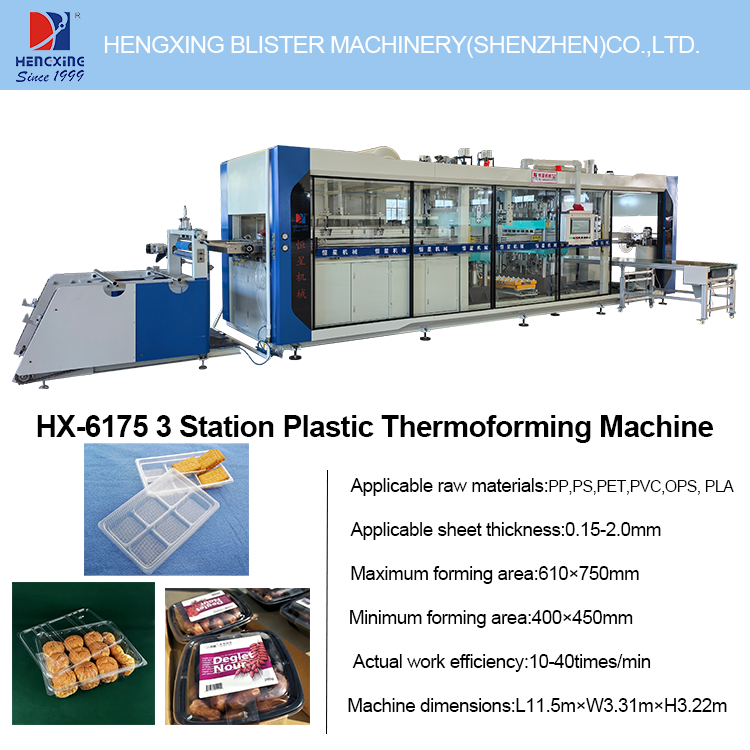

The fully automatic three-station positive and negative pressure thermoforming machine is a new-generation high-performance packaging solution developed by HengXing Thermoforming Machinery based on advanced German thermoforming technology. Integrating forming, cutting, and stacking stations, the machine adopts a full servo-driven system to achieve higher precision, faster production speed, and more stable operation, ensuring excellent product consistency and production efficiency.
It is compatible with various plastic sheet materials including PLA, PS, PET, PP, PVC, and ABS, and is widely used in the production of food packaging containers, trays, lids, plates, clamshell packaging, electronic trays, medical trays, nursery trays, and other thermoformed products.
With advanced positive and negative pressure forming technology, intelligent servo control, and reliable mechanical design, this machine provides customers with an efficient, energy-saving, and automated solution for high-quality plastic packaging production.
Key Specifications
Forming Size: 750×610mm
Production Speed: 10-40 cycles/min
Machine Weight: 1500 Kg
Pulling Servo Power: 4.5KW
Furnace Power: 117KW
Machine Dimensions: L11000×W2300×H3200mm
Key Technical Hoghlights
1,The machine is PLC-controlled, with the entire system operating fully automatically. Parameters are displayed digitally, and the user-friendly programming ensures simple operation. 2,Equipped with Japanese temperature control technology and German Cornell ceramic heating elements, the machine offers a long service life, double the precision in temperature control, and 15–20% energy savings in heating. It heats from 0 to 400° in just 3 minutes, is unaffected by voltage fluctuations, and maintains temperature stability within ±0.5°. 3,Molds can be quickly changed from the front of the machine, saving 20–30 minutes compared to conventional mold changes. 4,The entire machine utilizes an advanced servo motor-driven sheet feeding system. The stretching length and servo stretching are suitable for products over 50 mm in height, effectively preventing thin walls caused by material stretching. 5,Data on mold height, punching pressure and position, and beam width are saved, reducing setup time for subsequent production runs by 30 minutes.
Primary Applications
Compostable kinds of plastic materials production
Salad container and sushi tray manufacturing
Plastic bowl and coffee cup lid making
Blister vacuum forming for packaging
PP, PET, PS, PVC, PLA forming for various plastic products
Optimized material flow and easy maintenance access
CE & ISO certified manufacturing standards
Ergonomic design for operator safety and comfort
Support and Services
We provide comprehensive technical support including machine setup guidance, operation training, and maintenance services. Our expert team assists with troubleshooting, calibration, and optimization to ensure maximum productivity and minimal downtime.
Service Package Includes:
Detailed technical guidance and setup assistance
Regular maintenance and inspection services
Staff training programs for safe operation
Software updates and functionality upgrades
Genuine replacement parts and components
Preventive maintenance scheduling
Manufacturing Origin: Guangdong, China Certifications: CE & ISO Standards Delivery: 45 workdays in secure wooden case packaging Payment Options: L/C, T/T, Western Union, D/A, D/P
