Automatic PET Thermoforming Machine for Tamper-Evident Food Box Making Machine And Dried Fruit Packaging Box Making Machine PET Dried Fruit Box Making Machine

Automatic PET Thermoforming Machine for Tamper-Evident Food Box Making Machine And Dried Fruit Packaging Box Making Machine PET Dried Fruit Box Making Machine

Brand Name:	HengXing
Model Number:	HX-6175
MOQ:	1
Price:	15000$(deposit)
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE & ISO

Working Speed:

15-40 Times/minute

Applicable Sheet Width:

510-780mm

Chiller:

15P Air-cooled Chiller

Max Forming Depth:

120mm

Type:

Double Pressure Thermoforming Machine

Pulling Tab Servo:

4.5KW Inovance Servo

Cooling Method:

The Mold Is Cooled By Circulating Water

Coolingmethod:

Air Cooling / Water Cooling

Packaging Details:

Wooden Case

Highlight:

Automatic PET thermoforming machine for food packaging

Tamper-evident food box making machine

PET dried fruit packaging box machine

Product Description

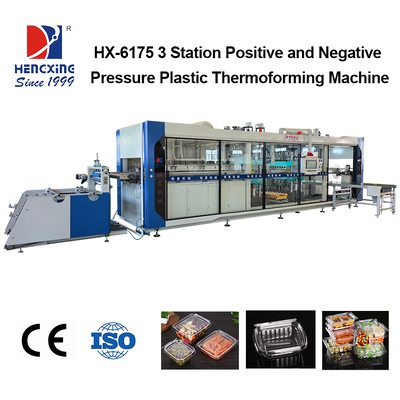

Automatic PET Thermoforming Machine

Advanced pressure thermoforming equipment designed for tamper-evident food boxes, dried fruit packaging, and various plastic container production. This versatile machine combines precision engineering with robust performance for demanding manufacturing applications.

Key Features

Large maximum punching area: 610×750mm for versatile product sizes
Substantial forming height: 120mm for deep and complex shapes
Efficient 15P air-cooled chiller for optimal temperature control
Wide applicable sheet width: 510-780mm for material flexibility
Double pressure thermoforming with positive and negative pressure
High forming pressure up to 0.8 MPa
Rapid production speed: 15-40 cycles per minute
Lifetime service support and technical assistance

Technical Specifications

Parameter	Specification
Applicable Sheet Width	510-780mm
Machine Type	Double Pressure Thermoforming Machine
Furnace Power	117KW
Forming Method	Positive and Negative Pressure Forming
Forming Pressure	Up to 0.8 MPa
Working Speed	15-40 Times/minute
Cooling Method	Air Cooling / Water Cooling (Mold cooled by circulating water)
Forming Height	120mm
Service	Lifetime Service

Applications

This versatile thermoforming machine is ideal for producing:

Tamper-evident food packaging boxes
Dried fruit packaging containers
Plastic bowls and disposable cups
Automotive components and parts
Household appliance housings
Medical device components
Custom packaging trays and containers

Certifications: CE & ISO Certified
Origin: Guangdong, China
Minimum Order: 1 Unit
Delivery Time: 45 Work Days
Payment Terms: L/C, T/T, D/A, D/P

Technical Support & Services

Comprehensive support package includes installation guidance, operational training, troubleshooting assistance, and maintenance advice. Our experienced technical team provides:

Machine setup, calibration, and optimization
Detailed user manuals and safety protocols
Regular maintenance services and schedules
Repair services and replacement parts
Customized solutions and system integration
Prompt technical support to maximize productivity
