PP PET Thermoforming Machine For Biscuit Insert Tray Making Machine And Candy Packaging Tray Making Machine

Name: PP PET Thermoforming Machine For Biscuit Insert Tray Making Machine And Candy Packaging Tray Making Machine
Brand: Hengxing Blister Machinery (Shenzhen) Co., Ltd
SKU: HX-6175
Price: 15000 USD
Availability: InStock

Brand Name:	HengXing
Model Number:	HX-6175
MOQ:	1
Price:	15000$(deposit)
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE & ISO

Forming Height:

120 MM

Type:

Double Pressure Thermoforming Machine

Pulling Tab Servo:

4.5KW Inovance Servo

Working Speed:

15-40 Times/minute

Furnace Power:

117KW

Max Forming Depth:

120mm

Chiller:

15P Air-cooled Chiller

Formingmethod:

Positive And Negative Pressure Forming

Packaging Details:

Wooden Case

Highlight:

PP PET thermoforming machine for biscuit trays

PET thermoforming machine for candy packaging

pressure thermoforming machine with warranty

Product Description

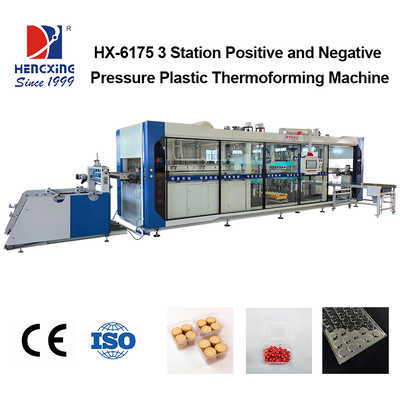

PP PET Thermoforming Machine for Biscuit Insert Tray and Candy Packaging Tray Production

This advanced pressure thermoforming machine delivers exceptional precision and efficiency for modern manufacturing needs. Designed for high-quality plastic component production, it features a generous 610×750mm maximum punching area to accommodate diverse shapes and sizes.

High-Speed Production Capability

Operating at 15 to 40 cycles per minute, this machine significantly boosts production rates while maintaining superior finished product quality. It efficiently handles both small batches and large volume production requirements.

Advanced Forming Technology

With forming pressure up to 0.8 MPa, the machine ensures consistent, uniform molding—particularly optimized for ABS plastic materials. The integration of both pressure and vacuum forming capabilities allows production of complex and delicate shapes with exceptional flexibility.

Efficient Cooling System

The circulating water cooling system provides rapid, uniform mold temperature reduction, minimizing cycle times while maintaining dimensional stability and surface quality of formed parts.

Technical Specifications

Cooling Method	The Mold Is Cooled By Circulating Water
Forming Pressure	Up To 0.8 MPa
Maximum Punching Area	610×750 mm
Pulling Tab Servo	4.5KW Inovance Servo
Furnace Power	117KW
Cooling Method Options	Air Cooling / Water Cooling
Max Forming Depth	120 mm
Service	Lifetime Service
Forming Method	Positive And Negative Pressure Forming
Chiller	15P Air-cooled Chiller

Industrial Applications

The HengXing HX-6175 Pressure Thermoforming Machine (CE & ISO certified) serves multiple industries with its versatile plastic forming capabilities:

Food Packaging: Efficient production of food-grade plastic bowls, trays, and containers using PET and other materials
Consumer Goods: Manufacturing of PET trays, containers, and blister packs for electronics and retail packaging
Automotive & Appliances: Production of interior panels, protective covers, and custom plastic components
Medical Devices: Precision forming of medical packaging and device components

Ordering Information: Minimum order quantity: 1 unit | Payment Terms: L/C, T/T, D/A, D/P | Delivery: 45 working days | Packaging: Wooden case

Support & Services

We provide comprehensive lifetime service support to ensure optimal machine performance and longevity:

Technical support for installation, calibration, and troubleshooting
Preventive maintenance programs and software updates
Part replacement and machine upgrade services
Detailed user manuals and operator training materials
Continuous technical assistance and spare parts availability

Our expert team ensures your thermoforming machine operates smoothly while meeting all manufacturing requirements for long-term reliability and excellent return on investment.
