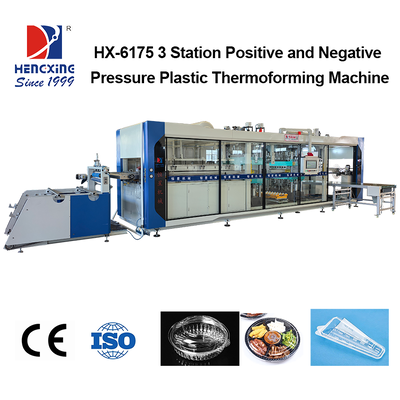

Multi-station Thermoforming Machine For Plastic Sandwich Box Making Machine And Food Container Making Machine

Multi-station Thermoforming Machine For Plastic Sandwich Box Making Machine And Food Container Making Machine

Brand Name: HengXing
Model Number: HX-6175
MOQ: 1
Price: 15000$(deposit)
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Certification:
CE & ISO
Applicable Sheet Width:
510-780mm
Coolingmethod:
Air Cooling / Water Cooling
Furnace Power:
117KW
Pulling Tab Servo:
4.5KW Inovance Servo
Cooling Mode:
Mold Through Circulating Water Cooling
Forming Height:
120 MM
Working Speed:
15-40 Times/minute
Type:
Double Pressure Thermoforming Machine
Packaging Details:
Wooden Case
Highlight:

multi-station thermoforming machine for plastic

,

sandwich box making machine with warranty

,

food container thermoforming machine

Product Description
Multi-station Thermoforming Machine for Plastic Sandwich Box and Food Container Production
The Pressure Thermoforming Machine is an advanced double pressure thermoforming system designed for modern manufacturing requirements. With a maximum punching area of 610×750mm, this versatile equipment delivers precision performance for producing various plastic products including packaging materials, automotive parts, and consumer goods.
Key Features
  • Double pressure system for enhanced forming accuracy and speed
  • Working speed of 15-40 cycles per minute for high throughput
  • 15P air-cooled chiller for optimal temperature control
  • Mold through circulating water cooling for consistent results
  • Compatible with ABS, HIPS, PET and other thermoplastic materials
  • Intuitive control panel for easy parameter adjustment
  • Sturdy construction for long-term durability
Technical Specifications
Parameter Specification
Working Speed 15-40 Times/minute
Chiller 15P Air-cooled Chiller
Max Forming Depth 120mm
Maximum Punching Area 610×750mm
Type Double Pressure Thermoforming Machine
Cooling Mode Mold Through Circulating Water Cooling
Service Lifetime Service
Applications
The HengXing HX-6175 Pressure Thermoforming Machine is designed for various industrial applications requiring precision and efficiency. This versatile equipment handles sheet widths from 510 to 780mm with a forming height of 120mm, making it ideal for:
  • Plastic tea cups and food containers
  • Packaging materials and consumer goods
  • Sandwich boxes and food containers
  • Industrial components and automotive parts
Certification & Delivery: CE and ISO certified • Packaged in sturdy wooden cases • Delivery within 45 work days • Flexible payment terms (L/C, T/T, D/A, D/P) • Minimum order quantity: 1 unit
Support and Services
Our comprehensive support package includes technical assistance, installation guidance, user training, and routine maintenance services. We provide detailed user manuals, troubleshooting guides, and online resources to ensure optimal machine performance.
  • Dedicated technical support team
  • Preventive maintenance schedules
  • Spare parts supply and software updates
  • Emergency repair services
  • Customized service packages available
