products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Pressure Thermoforming Machine
Created with Pixso.

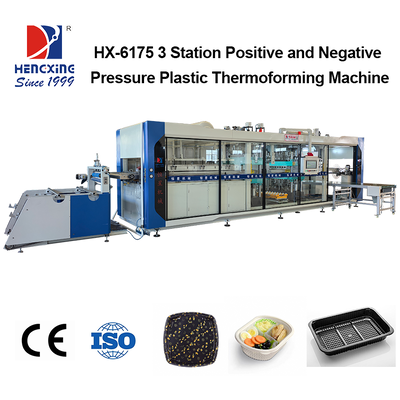

High Speed Thermoforming Machine For Plastic Sushi Box Making Machine And Takeaway Food Container Making Machine

High Speed Thermoforming Machine For Plastic Sushi Box Making Machine And Takeaway Food Container Making Machine

Brand Name: HengXing
Model Number: HX-6175
MOQ: 1
Price: 15000$(deposit)
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Certification:
CE & ISO
Furnace Power:
117KW
Formingmethod:
Positive And Negative Pressure Forming
Max Forming Depth:
120mm
Applicable Sheet Width:
510-780mm
Working Speed:
15-40 Times/minute
Cooling Method:
The Mold Is Cooled By Circulating Water
Maximum Punching Area:
610×750mm
Service:
Lifetime Service
Packaging Details:
Wooden Case
Highlight:

high speed thermoforming machine for plastic

,

sushi box making machine with warranty

,

takeaway food container thermoforming machine

Product Description
High Speed Thermoforming Machine for Plastic Sushi Box and Takeaway Food Container Production
The Pressure Thermoforming Machine is an advanced industrial equipment designed for high-quality plastic vacuum molding processes. This versatile machine delivers exceptional performance and reliability for businesses specializing in plastic component manufacturing, featuring robust construction and innovative cooling systems.
Key Features
  • Dual cooling system with air cooling and water cooling options
  • Mold through circulating water cooling for enhanced efficiency
  • High forming pressure capability up to 0.8 MPa
  • Accommodates plastic sheet widths from 510mm to 780mm
  • Equipped with 15P air-cooled chiller for optimal temperature control
  • Reduces cycle times and improves overall productivity
Technical Specifications
Type Double Pressure Thermoforming Machine
Forming Method Positive and Negative Pressure Forming
Maximum Punching Area 610×750 mm
Forming Height 120 mm
Furnace Power 117 KW
Pulling Tab Servo 4.5 KW Inovance Servo
Cooling Method Mold Through Circulating Water Cooling
Chiller 15P Air-cooled Chiller
Industrial Applications
The HengXing HX-6175 Pressure Thermoforming Machine is CE and ISO certified, making it suitable for various manufacturing environments. This vacuum forming equipment excels in producing:
  • Plastic sushi boxes and takeaway food containers
  • Blister packs for electronics and consumer goods
  • Custom packaging solutions and trays
  • Automotive components and medical device packaging
  • Prototyping and medium to large batch production
Product Details: Model HX-6175 | Origin: Guangdong, China | Minimum Order: 1 unit | Delivery: 45 workdays | Payment Terms: L/C, T/T, D/A, D/P
Technical Support & Services
We provide comprehensive support including installation assistance, operator training, preventive maintenance, and troubleshooting. Our technical team offers detailed manuals, regular software updates, and readily available spare parts to ensure optimal machine performance and minimize downtime.
Tags:

pressure thermoformer machine

plastic thermoforming machine

pressure forming machine
