products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Pressure Thermoforming Machine
Created with Pixso.

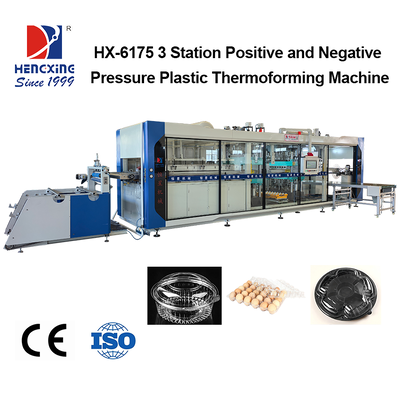

3-Station Positive & Negative Pressure Thermoforming Machine for 2-Piece Egg Cartons

3-Station Positive & Negative Pressure Thermoforming Machine for 2-Piece Egg Cartons

Brand Name: HengXing
Model Number: HX-6175
MOQ: 1
Price: 15000$(deposit)
Payment Terms: L/C T/T Western Union D/A D/P
Detail Information
Product Description
Detail Information
Certification:
CE & ISO
Finish Product Height:
Maximum 120 Mm
Type:
Pressure Thermoforming Machine
The Longest Knife:
10 M
Sheet Thickness:
0.15-2.0 Mm
Model:
HX-6175
Forming Area:
750*610 Mm
Heating Power:
109.25 KW
Chiller:
10P Air-cooled Chiller
Packaging Details:
Wooden Case
Highlight:

3-station positive pressure thermoforming machine

,

negative pressure thermoforming machine for egg cartons

,

2-piece egg carton thermoforming machine

Product Description
3-Station Positive & Negative Pressure Thermoforming Machine for 2-Piece Egg Cartons
The Hengxing 3-Station Positive & Negative Pressure Thermoforming Machine is engineered for automated production of plastic egg cartons, 2-piece egg cartons, egg trays, and egg packaging containers. This advanced system utilizes a comprehensive process of heating, positive and negative pressure forming, cutting, and stacking to manufacture high-quality thin-wall plastic egg packaging.
Main Applications
  • 2-Piece Egg Cartons
  • Plastic Egg Cartons & Boxes
  • 12-Egg & 6-Egg Plastic Cartons
  • Egg Trays & Packaging Trays
  • Transparent Egg Containers
  • Hinged Egg Cartons
  • Egg Storage Containers
  • Supermarket, Retail & Farm Egg Packaging
Understanding 2-Piece Egg Cartons
A 2-piece egg carton consists of two separately formed plastic components – typically a tray section and a cover section. This design offers superior egg protection, improved product visibility, convenient opening and closing mechanisms, enhanced retail presentation, and flexible packaging design options compared to single-piece alternatives.
Thermoforming Process Overview
1. Automatic Sheet Feeding
Thermoforming sheet is automatically fed into the machine with precision toward the heating section.
2. Sheet Heating
The sheet passes through the heating system, reaching optimal forming temperature. Parameters are adjustable for PET, PP materials, sheet thickness, product shape, depth, and production speed.
3. Positive & Negative Pressure Forming
Heated sheet enters the forming station where positive air pressure and negative vacuum pressure work together to shape the material against the mold, ideal for multi-cavity egg packaging with detailed structures.
4. Cutting
Formed egg cartons are separated from the surrounding sheet using precision cutting molds designed for specific product shapes and cavity arrangements.
5. Automatic Stacking
Finished products are automatically stacked for easy collection, inspection, packing, and transportation.
Material Compatibility
PET: Ideal for transparent egg packaging requiring product visibility
PP: Excellent for applications demanding toughness and durability
PS: Suitable for specific thermoformed egg packaging requirements
Key Features
  • Positive & Negative Pressure Forming System
  • 3-Station Integrated Production
  • PLC Control System
  • Automatic Sheet Feeding
  • Customized Egg Carton Molds
  • Automatic Cutting & Stacking
  • Flexible Material Selection (PET, PP, PS)
Product Specifications
Item Description
Machine Type 3-Station Positive & Negative Pressure Thermoforming Machine
Main Application Plastic Egg Cartons & Egg Trays
Special Application 2-Piece Egg Cartons
Forming Method Positive & Negative Pressure
Suitable Materials PET, PP, PS and other suitable sheets
Control System PLC
Production Process Heating → Forming → Cutting → Stacking
Automation Automatic
Final technical specifications and production capacity should be confirmed according to selected machine model, product design, material, sheet thickness and mold configuration.
Why Choose Hengxing?
With more than 25 years of manufacturing experience since 1999, Hengxing provides complete thermoforming solutions including customized molds, cutting & stacking machines, plastic crushers, and auxiliary equipment. Our international export experience ensures reliable machine configuration, technical support, and production guidance tailored to your specific requirements.
Get Your Custom Quote
Looking for an Egg Carton Thermoforming Machine?

Provide your product photo, drawing, material information and required production capacity for a customized solution recommendation.

Hengxing Thermoforming Machinery (Shenzhen) Co., Ltd.
Website: www.hxblistermachine.com
WhatsApp: +86 17304090157
Email: hx18929352295@gmail.com
