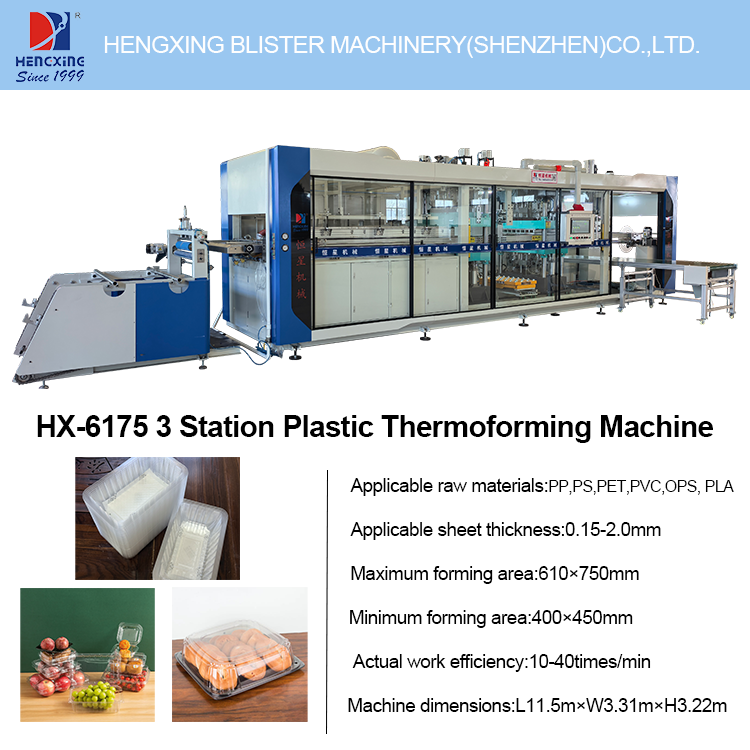

Hengxing 3-Station Thermoforming Machine for Fruit Trays & Clamshell Containers

Name: Hengxing 3-Station Thermoforming Machine for Fruit Trays & Clamshell Containers
Brand: Hengxing Blister Machinery (Shenzhen) Co., Ltd
SKU: HX-6175
Price: 15000 USD
Availability: InStock

Brand Name:	HengXing
Model Number:	HX-6175
MOQ:	1
Price:	15000$(deposit)
Payment Terms:	L/C T/T Western Union D/A D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE & ISO

Document:

1、HX-6175 Three Station P...ne.pdf

Type:

Pressure Thermoforming Machine

Power Supply:

AC 380 V 50/60 HZ

Sheet Thickness:

0.15-2.0 Mm

Operation Method:

Touch Screen Operation

Chiller:

10P Air-cooled Chiller

Max Speed:

60 Moulds/min

Heating Power:

109.25 KW

Air Consumption:

≥5.5m³/min 0.6-0.8Mpa

Packaging Details:

Wooden Case

Highlight:

3-station thermoforming machine for fruit trays

thermoforming machine for clamshell containers

pressure thermoforming machine with warranty

Product Description

The Hengxing 3-Station Positive & Negative Pressure Thermoforming Machine is engineered for automated production of plastic fruit trays, fresh produce packaging, food containers, and other thin-wall thermoformed products. Utilizing materials such as PP, PET, PS, PVC, PLA, and other thermoforming sheets, this machine integrates heating, positive and negative pressure forming, cutting, and stacking into a seamless automated workflow.

Key Applications

This versatile machine can be customized for various fruit and food packaging applications, including:

Plastic Fruit Trays
Fresh Produce Trays
Strawberry, Blueberry, Cherry, Grape, and Tomato Trays
Vegetable Trays
Food Containers and Multi-Compartment Trays
Takeaway Food Containers
Supermarket Fresh Food Packaging
Plastic Clamshell Packaging

Different products can be manufactured by changing the thermoforming mold according to specific product dimensions, shapes, and production requirements.

Compatible Thermoforming Materials

PP - Polypropylene

Ideal for food containers, fruit trays, and takeaway boxes due to excellent toughness and chemical resistance.

PET - Polyethylene Terephthalate

Perfect for transparent fruit packaging and fresh produce trays where product visibility is essential.

PS - Polystyrene

Suitable for lightweight trays and disposable packaging applications.

PVC - Polyvinyl Chloride

Used for specific transparent packaging and blister applications based on customer requirements.

PLA - Polylactic Acid

Environmentally friendly option for compostable packaging solutions, subject to material formulation.

3-Station Thermoforming Process

1. Sheet Feeding: Plastic sheet is automatically fed and transported through the production line.

2. Heating: Sheet passes through adjustable heating system to reach optimal forming temperature.

3. Positive & Negative Pressure Forming: Combination of air pressure ensures accurate product shapes with detailed structures.

4. Cutting: Formed products are separated from surrounding sheet according to mold design.

5. Stacking: Finished products are automatically stacked for convenient collection and packaging.

Main Features

Positive & Negative Pressure Forming: Strong forming capability for diverse packaging products
Automatic Production: Integrated processes reduce manual operation and improve efficiency
PLC Control System: Convenient operation with adjustable production parameters
Customized Thermoforming Molds: Tailored to specific product designs and cavity layouts
Multiple Material Compatibility: Configurable for PP, PET, PS, PVC, PLA and other sheets
Flexible Applications: One machine for various fruit trays and packaging products
Automatic Cutting and Stacking: Reduces labor requirements and simplifies packaging

Product Specifications

Machine Type	3-Station Positive & Negative Pressure Thermoforming Machine
Application	Fruit Trays, Food Containers, Fresh Produce Packaging
Forming Method	Positive & Negative Pressure
Materials	PP, PET, PS, PVC, PLA, and other suitable sheets
Control System	PLC Control
Production Process	Heating → Forming → Cutting → Stacking
Mold	Customized according to product
Automation	Automatic Production
Product Type	Thin-Wall Plastic Packaging
Application Industries	Food, Fresh Produce, Supermarket Packaging, General Packaging

Why Choose Hengxing?

25+ Years Manufacturing Experience since 1999
Complete Thermoforming Solutions including machines, molds, and auxiliary equipment
Customized Machine Configuration based on product dimensions, material, and production requirements
International Export Experience serving global markets
Comprehensive After-Sales Technical Support for installation and operation

Get a Custom Quote

Hengxing Thermoforming Machinery (Shenzhen) Co., Ltd.
Website: www.hxblistermachine.com
WhatsApp: +86 17304090157
Email: hx18929352295@gmail.com

Send us your product drawing, sample photo, material specifications, and required production capacity for a customized solution.
