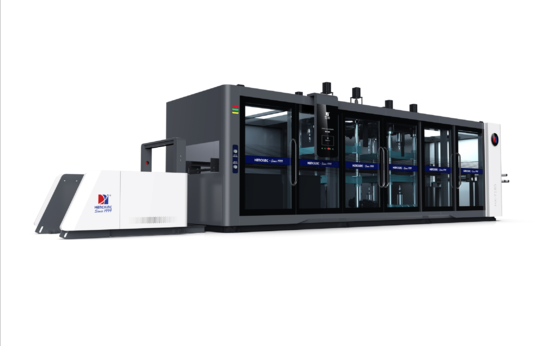

Lock Model Positive And Negative Pressure Thermoforming Machine Multi Station 10-30 Mold/Min with 710×850mm Maximum Molding Die Area and 400×450mm Minimum Forming Die Area

Lock Model Positive And Negative Pressure Thermoforming Machine Multi Station 10-30 Mold/Min with 710×850mm Maximum Molding Die Area and 400×450mm Minimum Forming Die Area

Brand Name:	HengXing
Model Number:	HX-7185
MOQ:	1
Price:	CNY：15W (deposit)
Payment Terms:	L/C,T/T,Western Union,MoneyGram,D/A,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Applicable Raw Materials:

PET,PP,PC,PS,PVC,BOPS, PLA,Degradable Corn Starch, Etc

Production Efficiency:

10-30 Mold/min

Maximum Molding Die Area:

710×850mm

Minimum Forming Die Area:

400×450mm

Maximum Punching Area:

710×850mm

Applicable Sheet Width:

510-750mm

Applicable Sheet Thickness:

0.15-1.5mm

Maximum Cutting Force Of Cutting Station:

80T

Height Of Formed Products:

Max 120mm

Operating Weight:

14T

External Dimensions:

L12.5×W3.31×H3.22m

Roll Diameter Of The Largest Material:

700mm

Cooling Mode:

The Mold Is Cooled By Circulating Water

Client Air Source (external Configuration):

Air Supply ≥ 5.5m ³ / Min Air Pressure 0.6~0.8Mpa

Maximum Opening And Closing Stroke Of Forming Die:

Upper And Lower 150mm Mold Closing Spacing 450mm+50mm Adjustable

Maximum Opening And Closing Stroke Of Cutting Die:

Upper And Lower 150mm Mold Closing Spacing 375mm+50mm Adjustable

Rated Power Of Electric Furnace:

130kw (actual Consumption 30-50%)

Packaging Details:

wooden case

Highlight:

negative pressure thermoforming machine multi station

30mold/min vacuum thermoforming machine

30mold/min negative pressure thermoforming machine

Product Description

Lock Model Positive And Negative Pressure Thermoforming Machine

Multi Station 10-30mold/Min High Speed Thermoforming Solution

The HX Lock Model Multi Station Positive And Negative Pressure Thermoforming Machine is an advanced plastic forming integrated solution developed with German technology. This high-speed thermoforming machine combines four fully automatic functions: heating forming, cutting, stacking, and counting, making it ideal for packaging, food, electronics, and pharmaceutical industries.

Key Features

Control System

High-definition MCGS color IoT touch screen with remote monitoring and troubleshooting capabilities
Custom operating system with intuitive interface (50 modes/minute testing speed)
Comprehensive monitoring including automatic lubrication, vacuum maintenance, and document storage
Mold height data storage for rapid production setup (20-30 minutes faster mold changes)

Loading Area

2.2KW high-power motor feeding system with 700mm max roll diameter (500KG capacity). Features rubber roller transmission, material rods for sheet replacement, and silicone oil spraying for easy demolding.

Heating Area

Aluminum furnace design resistant to high-temperature deformation with insulation backing
Swedish Cornell heating wires (5-year warranty) for fast heating and durability
Precision temperature control module for consistent production quality
Energy-saving mode for sheets under 620mm width

Forming Area

610×750mm forming area with 120mm max height
Japanese imported positive pressure valves for fast forming
High-power servo motors for 24/7 continuous operation
Smart water valve system prevents mold condensation
Mold memory system eliminates adjustment needs for repeat production

Cutting Area

630×750mm cutting area with heated knife system. Features digital depth adjustment, position data storage, and high-power servo motors for consistent cutting performance across material thicknesses.

Material Specifications

Suitable for PLA, PET, PP, PVC, ABS materials producing bowls, lids, boxes, dishes, electronic trays, and pharmaceutical packaging.

Technical Specifications

Production Speed	10-30 molds/minute
Max Roll Diameter	700mm (500KG capacity)
Forming Dimensions	610×750mm (120mm height)
Cutting Dimensions	630×750mm
Vacuum System	200m³/H vacuum pump with large tank design
Cooling System	High-pressure pump chiller

Advanced Systems

Mechanical Arm System

High-power torque servo for 24/7 operation with multiple stacking modes (up/down, in-mold, out-of-mold) and flexible discharge options.

Chain Track Transmission

High-power servo for consistent material pulling
Automatic width adjustment with data storage
High-precision reducer with spline shaft transmission
Hardened oxide beam (Vickers 85°) with imported guide chains

Lubrication System

Dual high-pressure lubrication systems (workstation and chain) using food-grade, high-temperature resistant lubricants to minimize wear.
