| Brand Name: | HX |
| Model Number: | HX-1510 |
| MOQ: | 1 |
| Price: | USD 13999$(deposit) |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Attribute | Value |
|---|---|
| Materials applicable to the machine | ABS, PP, HIPS, PVC, PC (Thickness 2 to 10 mm) |
| Maximum mould forming size | 1500*1000*500mm (adjustable to 400*300mm minimum) |
| Upper/lower formwork power | Servo motor movement lifting |
| Pressing rack | Latest pneumatic turnover pressing |
| Heating system | 650W S-type carbon fiber instantaneous heating tubes (1900*1200mm surface area) |
| Temperature control | Microcomputer voltage stabilizing module with recipe storage |
| Vacuum system | Air storage tank with fast/slow secondary vacuum pumping |
| Control system | Huichuan PLC with touch control interface |
| Safety features | Infrared grating, power-off door sensors, photoelectric hammer prevention |
| Cooling system | Air cooling + spray |
| Total power consumption | 70kW maximum (adjustable based on mold size) |
| Dimensions | 6500*2800*2900mm (3700mm with upper die) |
| Weight | Approx. 6T (excluding mold) |

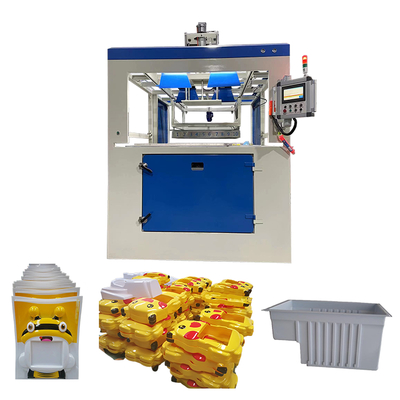

The HX 1510 is a double-station, fully automatic blister forming machine designed for thick plate processing. With a maximum forming area of 1500*1000*500mm (adjustable), this model ZW-1510 equipment features a robust structure and intuitive operation, ideal for large blister workpiece production.
