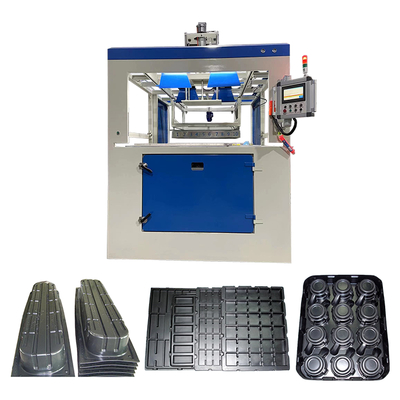

Double Station Full Automatic Blister Forming Machine with Adjustable Size and Servo Motor for 2 to 10 mm Thick Plates

Brand Name:	HX
Model Number:	HX-1510
MOQ:	1
Price:	USD 13999$(deposit)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Materials Applicable To The Machine:

ABS、PP、HIPS 、PVC、PC、 Thickness 2 To 10 Mm)

Maximum Mould Forming Size Of Equipment:

1500*1000* 500mm Equipped With Movable Wellhead Blowing, Minimum Adjustable 400 * 300

Power Of Auxiliary Upper Mold:

Servo Motor Movement Lifting

Power Of Lower Formwork Platform:

Servo Motor Movement Lifting

Pressing Rack:

Latest Pneumatic Turnover Pressing

Upper Heating Furnace:

650W S-type Ammeter S-type Carbon Fiber Instantaneous Heating Tube, Heating Furnace Surface 1900 * 1200

Lower Heating Furnace:

650W S-type Ammeter S-type Carbon Fiber Instantaneous Heating Tube, Heating Furnace Surface 1900 * 1200

Temperature Control System:

Microcomputer Voltage Stabilizing Module, One For One Recipe Storage And Temperature Control

Vacuum System:

Equipped With Air Storage Tank And Vacuum Pump For Fast And Slow Secondary Vacuum Pumping

Control System:

Huichuan PLC Control System

Safety Protection System:

Infrared Grating Signal, Open The Door And Power Off

Mold Cavity Heat Removal Function:

Fan Suction And Heat Removal

Infrared Hammer Prevention Function:

Photoelectric Hammer With Individually Adjustable Pneumatic Valve

Bubble Blowing Function:

Individual Pneumatic Valve Control

Cooling Mode:

Air Cooling+spray

Mould Forming Mode:

Convex And Convex Mould Heating Molding

Total Power Of Maximum Power Supply Approx:

Kw (normal Use Power Can Turn Off Unnecessary Heating Elements According To The Size Of Forming Mould)

Maximum Heating Power:

The Total Power Of The Upper And Lower Electric Furnaces Is 70 KW (the Normal Use Power Can Close The Unnecessary Heating Unit Outside The Mold According To The Size Of The Mold)

Platform Safety Door:

Disconnect The Power Supply When The Left And Right Doors Of The Front Door Are Opened

Overall Dimensions Of Equipment:

L=6500 W=2800 H=2900 (including Upper Die 3700) (for Reference)

Total Weight (excluding Mould):

Approx. 6T (for Reference)

Packaging Details:

wooden case

Highlight:

Adjustable Size Blister Forming Machine

Blister Forming Machine Double Station

Thick Plates Blister Forming Machine

Product Description

Thick Plates Blister Forming Machine Double Station Full Automatic Adjustable Size

HX 1510 Thick Plates Double Station Full Automatic 1500x1000x500mm Effective Mould Area

This double-station, full-automatic blister forming machine is designed for thick plates with a maximum effective mould forming area of 1500 × 1000 × 500mm (adjustable to customer product specifications). Model ZW-1510 features a robust structure, easy operation, and is ideal for forming large blister workpieces.

Key Features

Delta PLC high-definition touch control system for all production parameter settings
Fully automatic operation with only manual feeding required
Precision engineering for consistent, high-quality blister forming

Process Flow

Manual feeding → Automatic pressing → Automatic heating → Anti-sagging → Heater retraction → Optional bubble blowing → Die lifting → Vacuum forming → Cooling → Reverse blowing/demolding → Die lowering → Pressing box rising → Manual reclaiming

Advanced System Features

PLC Control: HD touch screen interface with real-time monitoring, diagnostics, and file backup
Material Pressing: Automatic wellhead adjustment system with safety grating protection
Heating System: Carbon fiber S-type heating tubes with 15-way temperature control and 304 stainless steel construction
Precision Movement: Frequency conversion motor for stable heater movement and servo-controlled die bench
Quality Assurance: Omron infrared anti-drop system, confined space forming, and rapid cooling system

Technical Specifications
