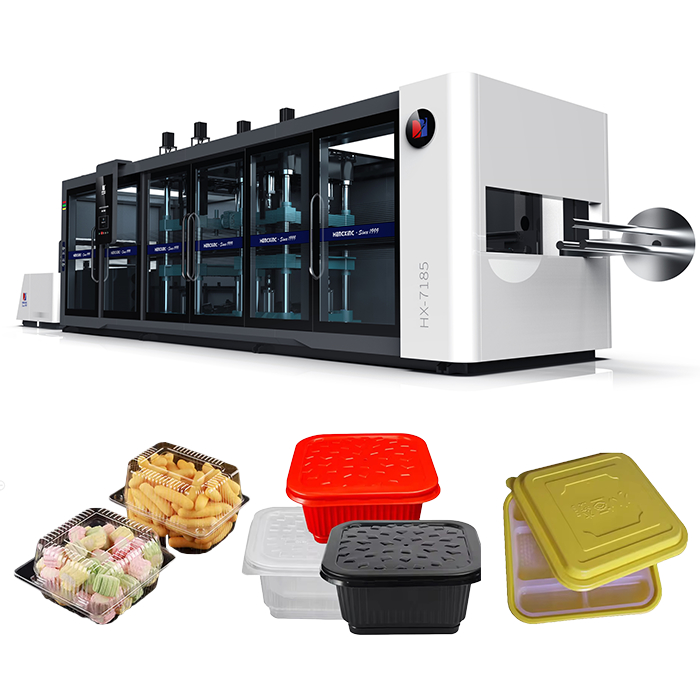

HX 7185 Pressure Thermoforming Machine with one-click operation for plastic trays, plates, meat, food, and fruit tray container production.
Machine Introduction
The HX-7185 fully automatic positive and negative pressure three-station thermoforming machine represents our company's expertise in thermoforming technology. This advanced equipment overcomes the efficiency and accuracy limitations of traditional plastic molding systems, providing stable, flexible, and efficient processing support for plastic product manufacturing across various industries.
Control System: Intelligent Operation and Maintenance
The control system serves as the equipment's central hub, balancing operational convenience with efficiency while adapting to domestic production requirements.
Human-computer interaction with ultra-high definition MCGS color IoT touch screen
Remote monitoring and troubleshooting capabilities with online inspection
Remote program upgrades and problem-solving to reduce downtime
Self-developed adaptation system with fastest idle testing up to 50 modes/minute
Quick learning curve - operators can become proficient within 1-2 days
Full process intelligent monitoring with production counting and automatic lubrication
Quick mold change and debugging with automatic data saving
Loading Area: Stable High-Capacity Feeding
Designed for continuous production with powerful feeding capabilities.
2.2KW high-power motor drive
Maximum roll diameter: 700mm
Single material load capacity: 500KG
Rubber roller driven feeding process
Silicone oil spraying device for improved demolding efficiency
Heating Area: Precise Temperature Control
High-quality components ensure stable heat source for consistent molding quality.
Aluminum furnace design resistant to high-temperature deformation
Insulation cotton backing extends heating wire life and reduces energy consumption
Swedish Cornell heating wire with 5-year warranty
2.5mm² high-temperature wiring for durability
Japanese imported temperature control equipment
Extended furnace design for centered mold installation
Molding Area: High-Efficiency Production
Advanced molding capabilities for complex product shapes and mass production.
Forming length: 850mm, width: 710mm
Four stages of upper and lower furnace heating
Maximum molding height: 150mm
High-power servo motors for upper and lower molds
24-hour continuous operation capability
Mold protection with selective water supply
Quick mold changing with automatic locking design
Cutting Area: Precision Cutting
Balanced strength and accuracy for diverse material processing needs.
Cutting size: 630 × 750mm
Heating knife electric control system
High-power servo driven cutting mechanisms
Side-mounted mold with automatic locking design
Precise cutting depth adjustment
Robot Arm System: Stable Stacking
Efficient product discharge and stacking for various production environments.
High-power torque servo for stacking operations
24-hour continuous operation capability
Supports up and down stacking modes
Side discharge design for flexible layout adaptation
Material Receiving System: Reliable Winding
Durable design ensures quality winding and reduces equipment failure risk.
Torque reducer driven system
Simple adjustment operation
Sufficient winding force
Enhanced durability compared to traditional variable frequency motor control
