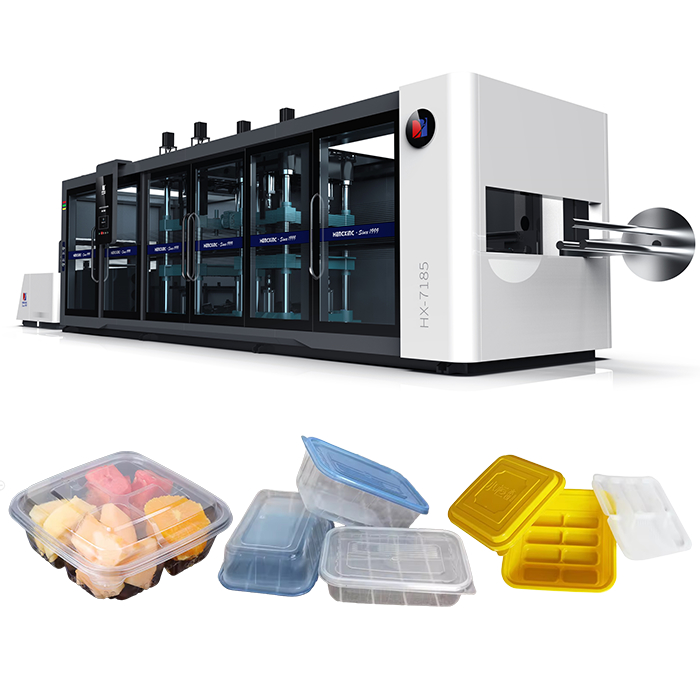

10-30Mold/Min Pressure Thermoforming Machine Intelligent Control Three Station

Name: 10-30Mold/Min Pressure Thermoforming Machine Intelligent Control Three Station
Brand: Hengxing Blister Machinery (Shenzhen) Co., Ltd
SKU: HX-7185
Price: 15000 USD
Availability: InStock

Brand Name:	HengXing
Model Number:	HX-7185
MOQ:	1
Price:	USD：15000 $ (deposit)
Payment Terms:	L/C,T/T,Western Union,MoneyGram,D/A,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

HX-7185

Applicable Raw Materials:

PET,PP,PC,PS,PVC,BOPS, PLA,Degradable Corn Starch, Etc

Production Efficiency:

10-30 Mold/min

Maximum Molding Die Area:

710×850mm

Minimum Forming Die Area:

400×450mm

Maximum Punching Area:

710×850mm

Applicable Sheet Width:

510-750mm

Applicable Sheet Thickness:

0.15-2.0mm

Maximum Cutting Force Of Cutting Station:

80T Knife Line Length 12m

Height Of Formed Products:

Max 120mm

Operating Weight:

14T

External Dimensions:

L12.5×W3.31×H3.22m

Cooling Method:

The Mold Is Cooled By Circulating Water

Packaging Details:

wooden case

Highlight:

30Mold/Min Pressure Thermoforming Machine

Intelligent Control Pressure Thermoforming Machine

Pressure Three Station Thermoforming Machine

Product Description

HX 7185 Pressure Thermoforming Machine Integrated Molding

Product Specifications

Attribute	Value
Model	HX-7185
Applicable raw materials	PET, PP, PC, PS, PVC, BOPS, PLA, Degradable corn starch, etc
Production efficiency	10-30 mold/min
Maximum molding die area	710×850mm
Minimum forming die area	400×450mm
Maximum punching area	710×850mm
Applicable sheet width	510-750mm
Applicable sheet thickness	0.15-2.0mm
Maximum cutting force of cutting station	80T Knife line length 12m
Height of formed products	Max 120mm
Operating Weight	14T
External dimensions	L12.5×W3.31×H3.22m
Cooling method	The mold is cooled by circulating water

Machine Overview

The HX-7185 fully automatic positive and negative pressure three station thermoforming machine represents our company's expertise in thermoforming technology. With cutting-edge technology integration and ergonomic design, it surpasses traditional plastic molding equipment in efficiency and precision, providing stable, flexible, and efficient processing capabilities for diverse industrial plastic product manufacturing.

1. Control System

The intelligent control system serves as the operational hub, balancing user-friendliness with production efficiency:

MCGS color IoT touch screen for human-computer interaction and remote support
Self-developed adaptation system with 50 molds/minute idle testing capability
Full process monitoring including production counting and automatic lubrication
Quick mold change system reduces setup time by over 30 minutes

2. Loading Area

High-capacity feeding system ensures continuous production:

2.2KW high-power motor with 700mm maximum roll diameter
500KG single material load capacity for uninterrupted production
Silicone oil spraying device improves demolding efficiency

3. Heating Area

Precision temperature control for consistent molding quality:

Aluminum furnace design resistant to high-temperature deformation
Swedish Cornell heating wire with 5-year warranty
Japanese imported temperature control equipment
Extended furnace design ensures balanced mold positioning

4. Molding Area

High-efficiency forming with intelligent mold management:

850mm forming length × 710mm width with four-stage heating
150mm maximum molding height for complex shapes
High-power servo motors for 24-hour continuous operation
Quick mold changing mechanism with position memory

5. Cutting Area

Precision cutting with minimal material loss:

630×750mm cutting size with heated knife system
High-power servo-driven cutting mechanisms
Digital depth adjustment for precise knife positioning

6. Robotic Arm System

Efficient product handling and stacking:

High-torque servo for 24-hour continuous operation
Flexible stacking and discharge modes for space optimization

7. Material Receiving System

Reliable winding with reduced failure risk:

Torque reducer drive for simple adjustment
Enhanced durability compared to traditional systems

8. Chain Track Transmission System

Precise material handling with extended component life:

Handles sheets up to 2.0mm thickness
Automatic track adjustment with width memory
Hardened oxide beam with imported guide bead chain

9. Cooling System

Efficient heat management for continuous production:

15P high-pressure pump chiller for rapid cooling
Maintains stable production speed

10. Vacuum System

Consistent molding quality with reduced defects:

High-flow vacuum pump with large capacity tank
Minimizes bubbles and wrinkles in finished products

11. Lubrication System

Comprehensive component protection:

High-pressure lubrication pump for workstations
Food-grade chain oil for hygiene-sensitive applications

Technical Diagram
